Cables, Patch Cords, Connectors & Accessories
Explore our comprehensive range of products
Adapters, connectors, patch cords, pigtails, attenuators, fast connectors, waterproof connectors and PLC splitters for ODN and FTTx networks.
View Products

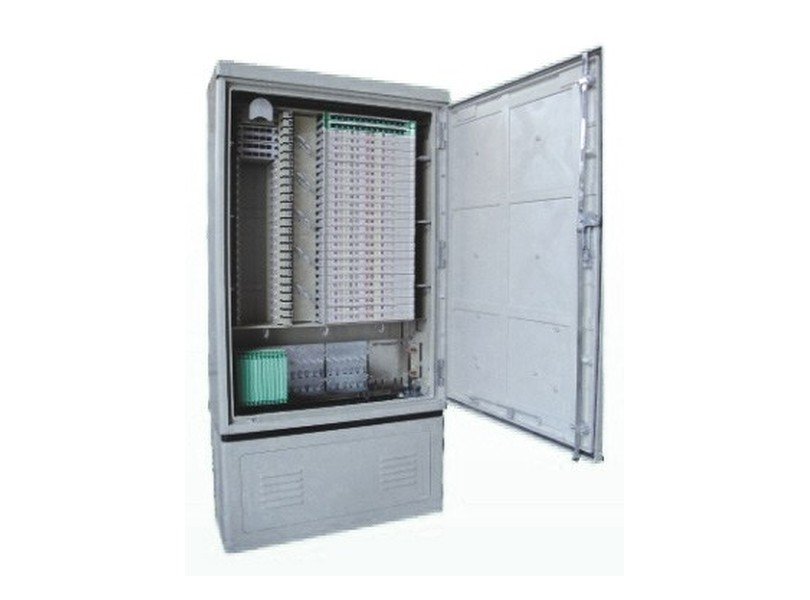

Interconnect cabinets, distribution frames, terminal boxes, distribution boxes, splice enclosures and cable management accessories.
View Products

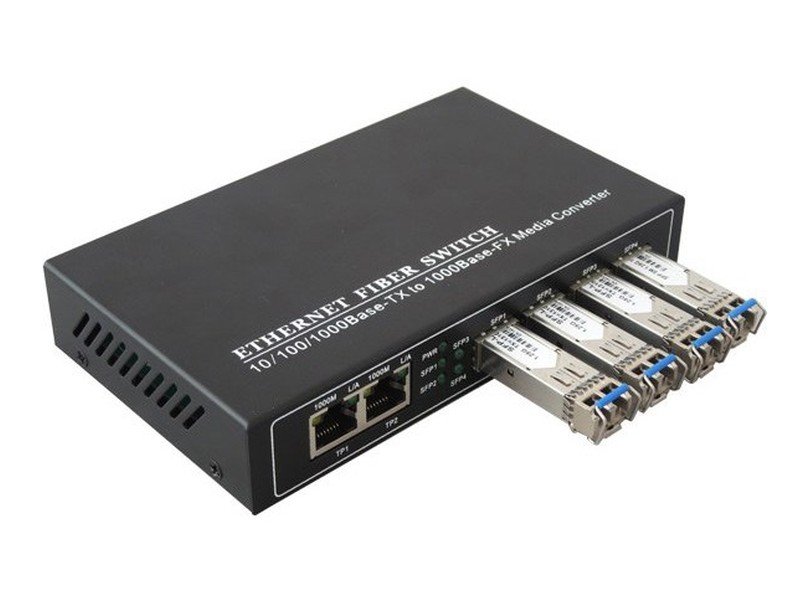

Ethernet fiber switches, rack mount and standalone media converters and optical network units for fiber access networks.
View Products

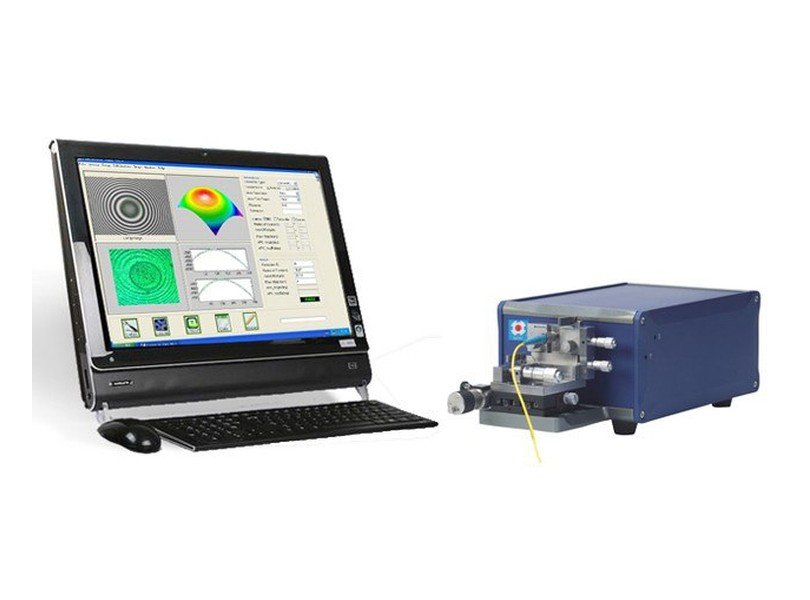

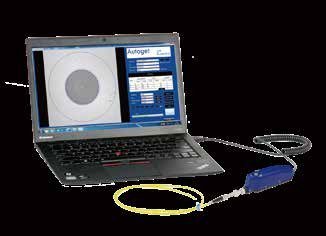

Interferometers, visual fault locators and connector polishing films for fiber optic assembly, testing and maintenance.
View Products
CWDM and DWDM multiplexers, LAN WDM, edge filter WDM and boxed WDM modules for metro, access and data centre networks.
View Products
MEMS-based variable optical attenuators including channel arrays, in-line devices, benchtop and hand-held instruments.
View Products

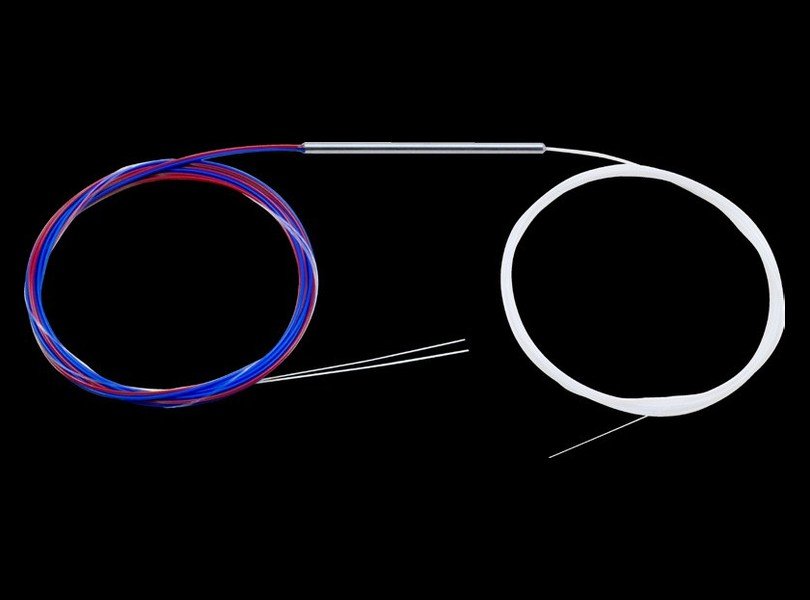

Fused biconical taper couplers, 1x2 fiber couplers, 980/1550 pump WDMs and Raman pump combiners.
View Products

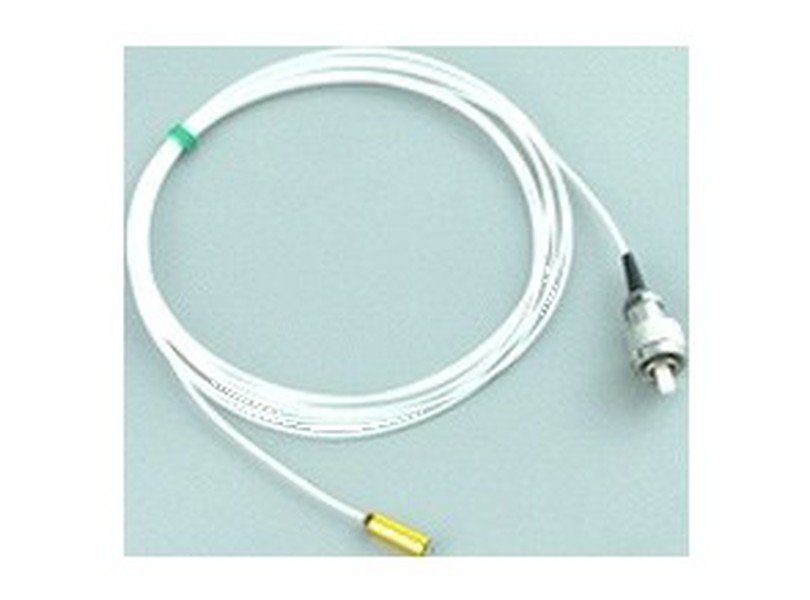

Optical switches, isolators, circulators, collimators, TAP-PD monitors, PD-WDM and isolator WDM hybrids.
View Products

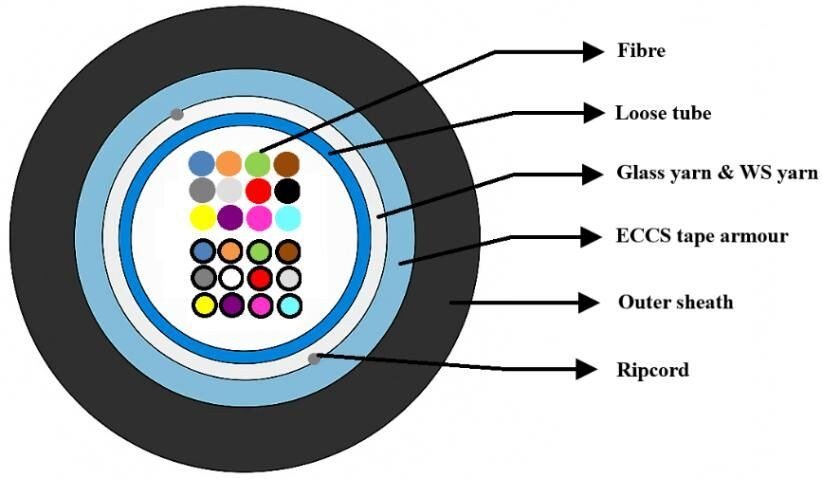

Single-mode and multi-mode fiber optic cables — indoor, outdoor, armoured and ADSS types.
Featured

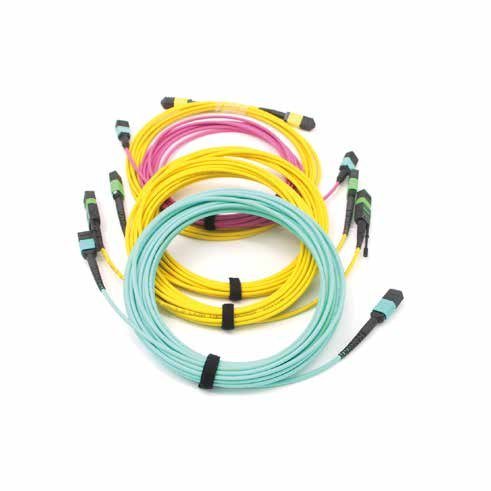

High-density MPO patch cord, splittable into 2–24 core 0.9 mm or 2.0 mm fiber branches via a round or square splitter.
| Insertion Loss (Single-mode) | Standard ≤0.75 dB, typical ≤0.5 dB; Low loss ≤0.35 dB, typical ≤0.2 dB |
| Insertion Loss (Multimode) | Standard ≤0.75 dB, typical ≤0.5 dB; Low loss ≤0.35 dB, typical ≤0.2 dB |
| Return Loss (Single-mode) | ≥60 dB (APC) |
| Return Loss (Multimode) | ≥30 dB (PC) |
| Repeatability | ≤0.1 dB |
| Durability | ≤0.2 dB typical change, 500 matings |
| Interchangeability | ≤0.2 dB |
| Tensile Strength | >70 N |
| Operating Temperature | -40°C to +85°C |
Fiber patch cords and pigtails in LC, SC, FC and ST terminations, simplex and duplex.

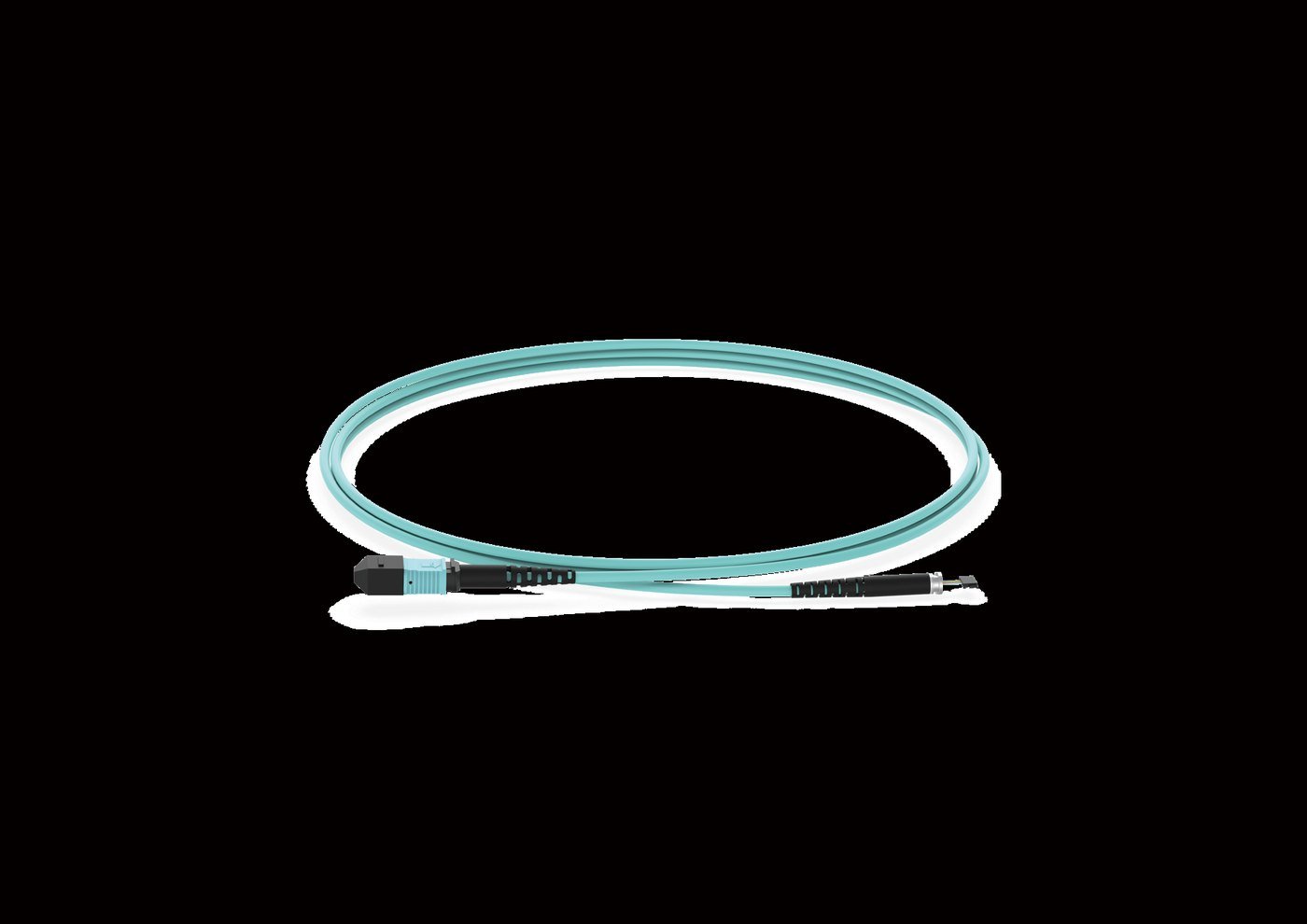

Fan-out cord connecting a 12-core MTP/MPO connector to LC connectors on the trunk cable. Standard and customised branch lengths.
| Insertion Loss (Single-mode, MTP/MPO) | Low loss ≤0.35 dB; Standard ≤0.7 dB |
| Insertion Loss (Single-mode, LC) | ≤0.3 dB |
| Insertion Loss (Multimode, MTP/MPO) | Low loss ≤0.35 dB; Standard ≤0.5 dB |
| Insertion Loss (Multimode, LC) | ≤0.3 dB |
| Return Loss (Single-mode, MTP/MPO) | ≥60 dB |
| Return Loss (Single-mode, LC) | ≥50 dB |
| Return Loss (Multimode, MTP/MPO) | ≥30 dB |
| Return Loss (Multimode, LC) | ≥50 dB |
| Durability | <0.2 dB typical change, 500 matings |
| Operating Temperature | -40°C to +85°C |

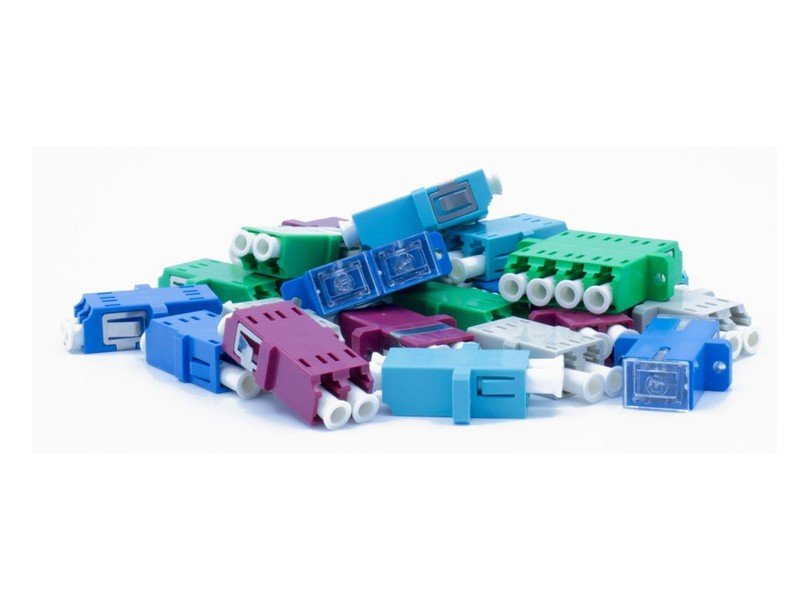

Fiber optic connectors, adapters and couplers for quick, low-loss terminations.

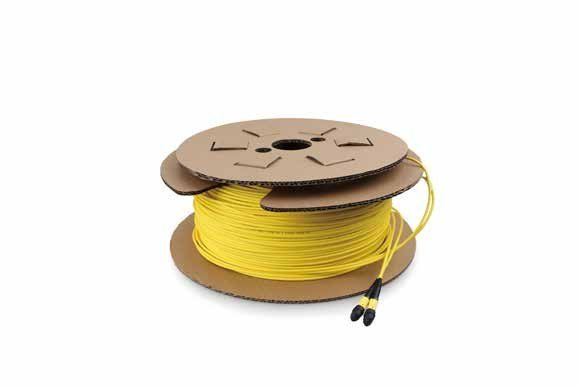

Pre-terminated trunk cable, 4 to 144 cores, with 8/12-pin MTP connectors at both ends. 100% factory tested.
| Insertion Loss (Single-mode) | Low loss ≤0.35 dB; Standard ≤0.7 dB |
| Insertion Loss (Multimode) | Low loss ≤0.35 dB; Standard ≤0.5 dB |
| Return Loss (Single-mode) | ≥60 dB |
| Return Loss (Multimode) | ≥30 dB |
| Durability | <0.2 dB typical change, 500 matings |
| Operating Temperature | -40°C to +85°C |
| 40G Configuration | 8 Fiber |
| 100G Configuration | 20 Fiber |
Optical distribution frames and fiber termination boxes for rack and wall mounting.
Round-style MPO connector whose polarity can be changed in the field without tools and without removing the housing.
| Insertion Loss (Single-mode, Standard) | ≤0.75 dB, typical ≤0.5 dB |
| Insertion Loss (Single-mode, Low loss) | ≤0.35 dB, typical ≤0.2 dB |
| Insertion Loss (Multimode, Standard) | ≤0.5 dB, typical ≤0.35 dB |
| Insertion Loss (Multimode, Low loss) | ≤0.35 dB, typical ≤0.2 dB |
| Return Loss (Single-mode) | ≥60 dB (APC) |
| Return Loss (Multimode) | ≥30 dB (PC) |
| Repeatability | ≤0.1 dB |
| Durability | ≤0.2 dB typical change, 500 matings |
| Interchangeability | ≤0.2 dB |
| Tensile Strength | >70 N |
| Operating Temperature | -40°C to +85°C |
Dome and inline fiber splice closures for aerial, buried and duct applications.
Duplex Uniboot LC patch cord. Thin round two-core cable reduces congestion and improves patch cord management and cabling space.
| Insertion Loss (Single-mode) | ≤0.30 dB |
| Insertion Loss (Multimode) | ≤0.30 dB |
| Return Loss (Single-mode) | ≥50 dB (PC), ≥60 dB (APC) |
| Durability (Single-mode) | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40°C to +85°C |
Duplex Uni-boot patch cord with pull-tab latch for high-density fiber patch panels.
| Insertion Loss (Single-mode) | ≤0.30 dB |
| Insertion Loss (Multimode) | ≤0.30 dB |
| Return Loss (Single-mode) | ≥50 dB (PC), ≥60 dB (APC) |
| Durability (Single-mode) | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40°C to +85°C |
Push-pull boot duplex patch cord for dense patch panels; fast, convenient insertion and removal.
| Insertion Loss (Single-mode) | ≤0.30 dB |
| Insertion Loss (Multimode) | ≤0.30 dB |
| Return Loss (Single-mode) | ≥50 dB (PC), ≥60 dB (APC) |
| Durability (Single-mode) | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40°C to +85°C |
Wideband multimode (OM5) patch cords, cassettes and panels, 850–953 nm, fully intermateable with OM3 and OM4.
| Fiber Type | OM5 (50 µm multimode fiber) |
| Wavelength Range | 850–953 nm |
| Jacket Colour | Lime green |
| Furcation Colour | Lime green |
| Connector Type | MPO / MTP / LC / SC / FC / customised |
| Connector Colour | Customised |
| Regulatory Compliance | IEC 60793-2-10 / TIA-492AAAE / RoHS / ISO9001 |
| Operating Temperature | -40°C to +85°C |
Armour-tube protected MPO patch cord — soft, flexible, easy to lay and splice, with large data transmission capacity.
| Insertion Loss (Single-mode) | ≤0.75 dB |
| Insertion Loss (Multimode) | ≤0.50 dB |
| Return Loss (Single-mode) | ≥50 dB (PC), ≥60 dB (APC) |
| Return Loss (Multimode) | ≥30 dB (PC) |
| Durability | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40°C to +85°C |
Very Small Form Factor (VSFF) duplex connector with 1.25 mm ferrules — 3× LC density, 216 duplex connectors (432 fibers) in 1 RU.
| Attenuation Grade | IEC Grade B random mating |
| Mean Attenuation | 0.12 dB |
| Maximum Attenuation | 0.25 dB for ≥97% of connectors |
| Ferrule | 1.25 mm |
| Cable OD | Up to 2.0 mm |
| Density | 216 duplex connectors / 432 fibers per 1 RU |
| Standards | Telcordia GR-326, TIA-568 |
| Polish Options | UPC or APC |
Base-2 VSFF connector, 4× duplex-LC cabling density, optimised for 400G with QSFP-DD, OSFP and SFP-DD transceivers.
| Typical Insertion Loss (SM UPC Premium Low Loss) | 0.05 dB |
| Typical Insertion Loss (SM UPC Premium) | 0.08 dB |
| Typical Insertion Loss (SM APC Premium Low Loss) | 0.07 dB |
| Typical Insertion Loss (SM APC Premium) | 0.12 dB |
| Typical Insertion Loss (Multimode Premium) | 0.05 dB |
| Max Insertion Loss (SM UPC Premium Low Loss) | 0.15 dB |
| Max Insertion Loss (SM UPC Premium) | 0.20 dB |
| Max Insertion Loss (SM APC Premium Low Loss) | 0.15 dB |
| Max Insertion Loss (SM APC Premium) | 0.25 dB |
| Max Insertion Loss (Multimode Premium) | 0.15 dB |
| Typical Return Loss (UPC) | ≥55 dB |
| Typical Return Loss (APC) | ≥65 dB |
| Typical Return Loss (Multimode) | ≥25 dB |
| Operating Temperature | -40°C to +75°C |
| Durability | <0.2 dB typical change, 500 matings |
| Ferrule Ø (Single-mode) | 125.5 µm |
| Ferrule Ø (Multimode) | 127 µm |
Base-2 VSFF connector with 1.25 mm ferrule technology and a three-fold increase in packing density over LC.
| Typical Insertion Loss (SM UPC Premium Low Loss) | 0.05 dB |
| Typical Insertion Loss (SM UPC Premium) | 0.08 dB |
| Typical Insertion Loss (SM APC Premium Low Loss) | 0.07 dB |
| Typical Insertion Loss (SM APC Premium) | 0.12 dB |
| Typical Insertion Loss (Multimode Premium) | 0.05 dB |
| Max Insertion Loss (SM UPC Premium Low Loss) | 0.15 dB |
| Max Insertion Loss (SM UPC Premium) | 0.20 dB |
| Max Insertion Loss (SM APC Premium Low Loss) | 0.15 dB |
| Max Insertion Loss (SM APC Premium) | 0.25 dB |
| Max Insertion Loss (Multimode Premium) | 0.15 dB |
| Typical Return Loss (UPC) | ≥55 dB |
| Typical Return Loss (APC) | ≥65 dB |
| Typical Return Loss (Multimode) | ≥25 dB |
| Operating Temperature | -40°C to +75°C |
| Durability | <0.2 dB typical change, 500 matings |
| Ferrule Ø (Single-mode) | 125.5 µm |
| Ferrule Ø (Multimode) | 127 µm |
Four-core connector within SC single-fiber interface dimensions — 100% higher transmission density than LC duplex in the same panel space.
| Ferrule | Universal 1.25 mm |
| Module Capacity | 48 cores (vs 24 cores for LC) |
| 1U Patch Panel Capacity | 192 cores (vs 96 cores for LC) |
| 45U Single-Rack Capacity | 8640 cores at 2160 ports (vs 4320 cores for LC) |
| Density Gain | +100% over LC duplex |
| Interoperability | IEC random mating Grade B |
| Reliability | GR-326 compliant |

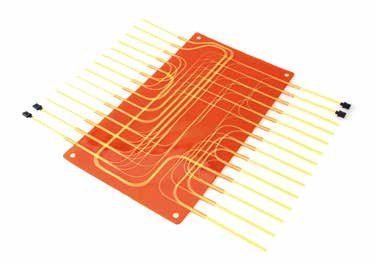

Flexible optical backplanes for high-fiber-count interconnection in backplane and cross-connect systems — up to thousands of cores.
| Base Material | High-temperature resistant, flexible and environmentally friendly |
| Operating Temperature | 70°C |
| Number of Fiber Cores Accommodated | Customized |
| Fiber Flex Plate Thickness | ≤8 mm |
| Insertion Loss | ≤1.4 dB (1310 nm & 1550 nm) |
| Return Loss | ≥40 dB (1310 nm & 1550 nm) |
High-density rack-mounted distribution frame for MDA, IDA and HDA fiber trunk connection and management. 19-inch rack mount.
| 1U Capacity | 4 MPO cassettes; 96 cores with duplex LC adapters, 48 cores with simplex SC, up to 288 cores with MPO panels |
| 2U Capacity | 8 MPO cassettes; 192 cores with duplex LC adapters, 96 cores with simplex SC, up to 576 cores with MPO panels |
| 4U Capacity | 12 MPO cassettes; 288 cores with duplex LC adapters, 144 cores with simplex SC, up to 864 cores with MPO panels |
| Material | High quality cold rolled steel plate |
| Mounting | 19-inch rack |
| Standards | TIA/EIA604-D-2007, IEC61754-7-2008 series |
Scalable high-density MDA and HDA terminal cabling panel in 1U, 2U and 4U, with sliding tray and double rail design.
| Size — HDFDF-1U (W×D×H) | 482.6 mm (19") × 464.9 mm (18.3") × 44.2 mm |
| Size — HDFDF-2U (W×D×H) | 482.6 mm (19") × 464.9 mm (18.3") × 87.3 mm |
| Size — HDFDF-4U (W×D×H) | 482.6 mm (19") × 464.9 mm (18.3") × 174.6 mm |
| Cores — HDFDF-1U | 144 cores |
| Cores — HDFDF-2U | 288 cores |
| Cores — HDFDF-4U | 576 cores |
| Net Weight — HDFDF-1U | 6.8 kg |
| Net Weight — HDFDF-2U | 12.0 kg |
| Net Weight — HDFDF-4U | 18.5 kg |
| Material | Stainless steel and aluminium alloy |
| Accessories | Cable tie / magic stick strip / winding pipe |
| Supported Adapters | SC duplex / LC quad / MPO |
| Module Dimensions | 11.8 mm high, 93 mm total width, 40 g |
Sliding cassette providing transition between MPO pre-terminated trunk cable and LC or SC connectors. Installs in 19" 1U–3U patch panels.
| Fiber Capacity | 72 cores |
| Type | Sliding |
| Front Panel Adapters | LC or SC |
| Rear Panel | MPO adapters + pre-terminated trunk cable |
| Installation | 19-inch 1U–3U fiber patch panels |
| Shell | Metal |
| Standards | TIA/EIA604-D-2007, IEC61754-7-2008 series |

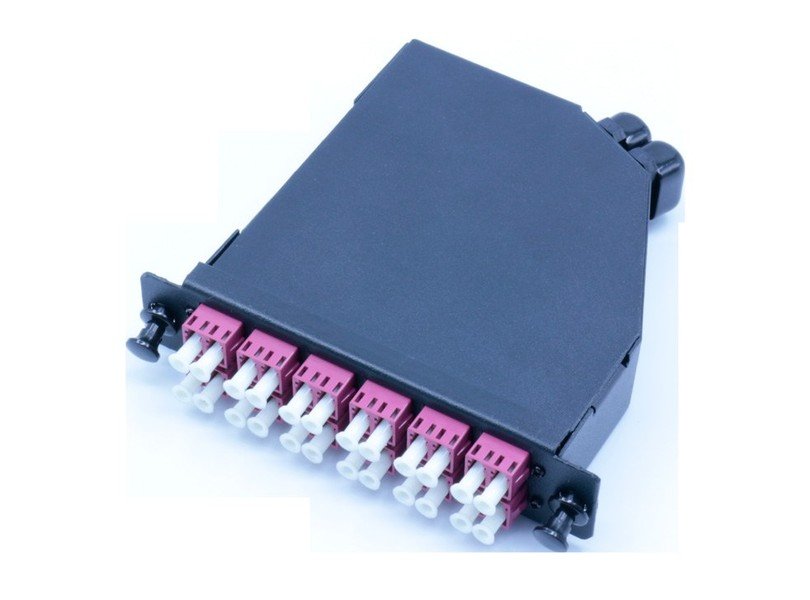

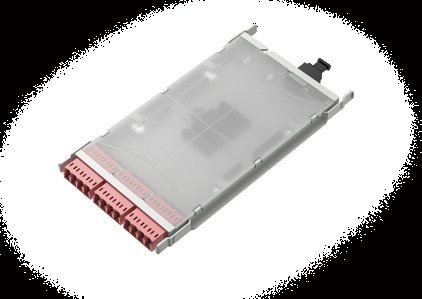

Closed-type cassette with 12/24-core fiber patch cords branching a 12-core MTP/MPO trunk cable to LC connectors.
| Fiber Capacity | 96 cores |
| Type | Fixed / snap-in modular |
| Adapter Capacity | 24 LC or 12 SC adapters |
| Branch Patch Cords | 12/24-core |
| Module Insertion Loss (Single-mode, Standard) | 1.0 dB max |
| Module Insertion Loss (Single-mode, Low Loss) | 0.7 dB max |
| Module Insertion Loss (Single-mode, Ultra-Low-Loss) | 0.5 dB max |
| Module Insertion Loss (Multimode, Standard) | 1.0 dB max |
| Module Insertion Loss (Multimode, Low Loss) | 0.7 dB max |
| Module Insertion Loss (Multimode, Ultra-Low-Loss) | 0.35 dB max |
| Standards | TIA/EIA604-D-2007, IEC61754-7-2008 series |

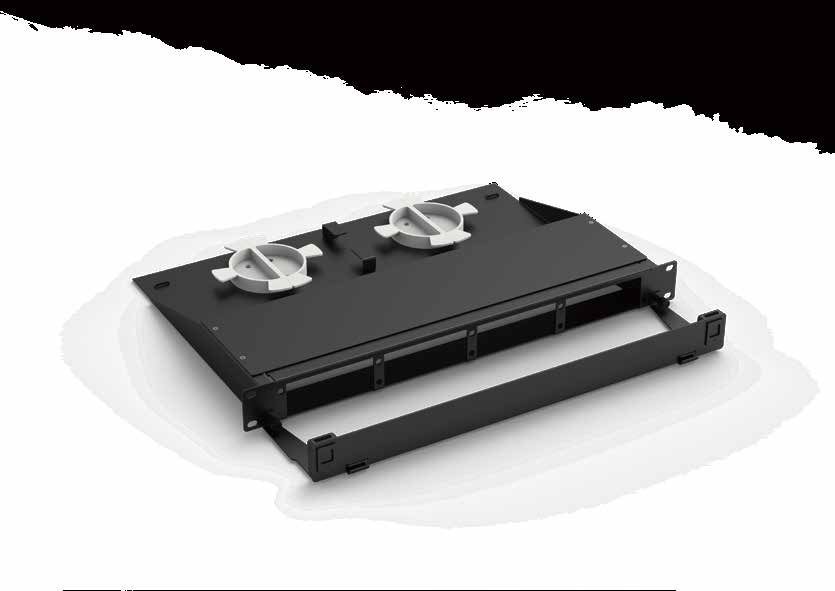

1U subrack for MPO terminals, up to 576F. Suits 19" cabinet equipment; 3U/4U subracks load up to 12/16 MPO cassettes. ETSI compliant.
| Dimensions | 482 mm (W) × 416.6 mm (D) × 44 mm (H) |
| Materials | Black powder coated rolled steel, colour code RAL 9005 |
| Plastic | Random |
| Maximum Capacity | SC duplex adapter 48F / LC quad adapter 96F / MPO adapter 576F / RJ45 adapter 24 |
| Number of Cassettes | 4 |
| Operating Temperature | -25°C to +55°C (5% to 95% relative humidity) |
| Weight | 2.8 kg |
| Subrack Loading | 3U/4U subrack: max 12/16 MPO cassettes |
| Standards | ETSI |
19" standard cabinet fiber distribution frame for central data office or building MDF rooms. Capacity up to 792 fibers.
| Maximum Capacity | 792 fibers |
| Cabinet | 19-inch standard |
| Cable Entry | Top or bottom |
| Supported Adapters | SC / FC / LC / ST |
| Tooling | No tools required during operation |
| Safety | Grounding facility and security door |
Cartridge-mount adapter panel for MTP/MPO or LC/SC connectors — 24 LC, 6 SC or 6 MPO/MTP ports per panel.
| Port Configuration | 24 LC ports / 6 SC ports / 6 MPO-MTP ports |
| Material | High-quality cold-rolled steel |
| Environmental | European RoHS compliant |
| Installation | Cartridge type |
| Standards | TIA/EIA-604-D-2007, IEC 61754-7-2008 series |
Patented 2×2 tap waveguide PLC splitter system for continuous real-time fiber path monitoring, integrating into an existing ODF.
| Splitter Type | 2×2 tap waveguide chip PLC splitter |
| Split Ratio | 98:2 non-uniform |
| Monitoring Ports | Both 2% ports — downlink and uplink |
| Splice Tray Integration | PLC splitters integrate into a standard 12-core fiber splice tray |
| Tray Capacity | 12 fiber channels per tray |
| 4U ODF Unit Capacity | 6 trays — 72 fiber channels |
| 4U Monitoring Controlling Unit Capacity | Up to 1152 fiber channels |
Fiber standard reference test line for patch cord insertion loss testing — high reliability, high stability, high precision ceramic ferrule.
| Insertion Loss (APC) | ≤0.10 dB |
| Insertion Loss (UPC) | ≤0.10 dB |
| Return Loss (APC) | ≥65 dB |
| Return Loss (UPC) | ≥55 dB |
| 2.5 mm Ferrule Grinding Radius ROC (APC) | 6–11 mm |
| 2.5 mm Ferrule Grinding Radius ROC (UPC) | 12–25 mm |
| 1.25 mm Ferrule End Face Radius ROC (APC) | 6–11 mm |
| 1.25 mm Ferrule End Face Radius ROC (UPC) | 7–20 mm |
| Vertex Offset | ≤30 µm |
| Angle Deviation (APC) | 8° ±0.2 |
| Angle Deviation (UPC) | 0° ±0.2 |
| Fiber Height | ±50 µm |
| Concentricity Offset Angle | ±45° |
| Mechanical Durability | Change amount <0.20 dB, 1000 repetitions |
| Operating Temperature | -40°C to +75°C |
| Durability (AR type) | 400 matings |
| Durability (Non-AR type) | 200 matings |
Loopback returning a test signal from TX to RX port, mating directly with parallel optical devices such as QSFP. Also simulates network distance.
| Fiber Count | 8 / 12 / 16 / 24 fibers |
| Fiber Type (Multimode) | OM1 / OM3 / OM4 |
| Fiber Type (Single-mode) | G657A2 |
| Polishing Type (Multimode) | PC or APC |
| Polishing Type (Single-mode) | APC |
| Housing | MPO / MTP |
| Housing Colour | MM beige, OM3 aqua, OM4 purple, SM green |
| Insertion Loss (Standard Type) | SM <0.7 dB, MM <0.7 dB (low loss); SM <1.5 dB, MM <1 dB (standard loss) |
| Insertion Loss (Attenuation Type) | 1–5 dB ±0.5 dB; 6–30 dB ±10% |
| Return Loss | SM >60 dB; MM >20 dB |
| 3D Standards | Meets IEC61755-3-31 |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Dimension | 60 × 20 × 6.5 mm (L × W × H) |
| Polarity — 8/12 Fibers | Type A 1-12, 2-11…; Type B 1-7, 2-8…; Type C 1-2, 3-4… |
| Polarity — 16 Fibers | Type A 1-16, 2-15…; Type B 1-9, 2-10…; Type C 1-2, 3-4… |
| Polarity — 24 Fibers | Type A 1-13, 2-14…; Type B 1-24, 2-23…; Type C 1-14, 2-13… |
Cleans female connector ferrule end faces, removing dust, oil and debris without nicking or scratching.
| CLEP 2.5 | FC/SC/ST cleaner pen, universal 2.5 mm |
| CLEP 1.25 | LC/MU cleaner pen, universal 1.25 mm |
Refillable non-alcohol cassette cleaner for MPO, MT and other fiber optic terminations. ESD-safe cover, 500+ cleans.
| Application | MPO/MTP (w/o pins), MT (w/o pins) |
| Volume | 130 mm × 60 mm × 30 mm |
| Service Life | Over 500 times per cassette |
| Cover Material | ESD material |
One-push cleaner wiping 12 cores at a time. Non-alcohol high density clean cloth; cleans both male and female MPO/MTP connectors.
| Cores Cleaned Per Push | 12 |
| Connector Compatibility | FOCIS-5 (MPO), male and female |
| Service Life | Over 550 cleans per unit |
| Material | Non-alcohol high density clean cloth |
High-performance bent-design cleaner for MPO and MTP connectors — cleans 12 or 16 cores at a time, ferrule (male) and adapter (female).
| TQ-CLEP-MPO-W12 | For 12 / 24 / 36 cores MPO/MTP — 500+ cleans per unit |
| TQ-CLEP-MPO-W16 | For 16 / 32 / 48 cores MPO/MTP — 500+ cleans per unit |
Refillable non-alcohol cassette cleaner for SC, FC, MU, LC, ST, D4, DIN and E2000 connectors. 500+ cleans per box.
| Applications | SC, FC, ST, MU, LC, MPO, MTRJ (w/o pins) |
| Dimensions | 115 mm × 79 mm × 32 mm |
| Cleaning Times | 500+ per box |
| Cleaning Level | 100 |
Reel-type connector cleaner with no chemicals — over 500 cleans per reel, replaceable cartridge, -20 to -50 dB return loss result.
| Cleaning Times | Over 500 times per reel |
| Cleaning Result | -20 to -50 dB (return loss) |
| Operating Temperature | -10°C to +50°C |
| Weight | 100 g |
| Connector Compatibility | SC, FC, ST, D4, LC, DIN, Bionic |
Combination cleaning kits with all accessories needed to quickly clean connectors and ports, in a carrying tool bag.
| KC-710A Contents | Prewetted alcohol cloth IPA; fiber optic cassette cleaner; replacement tape; fiber cleaning wipes (7.5×7.5 mm, 50/pkg); leakproof alcohol bottle 250 ml; 1.25 mm cleaning swab; 2.5 mm cleaning swab; 200X hand held fiber microscope; LED flashlight; carrying tool bag 240×150×210 mm |
| KC-710B Contents | LED mini flashlight; fiber optic cassette cleaner; replacement tape; fiber cleaning wipes (7.5×7.5 mm, 50/pkg); leakproof alcohol bottle 250 ml; 2.5 mm cleaning swab; fiber cleaning pen 1.25 mm; fiber cleaning pen 2.5 mm; handheld fiber magnifier 400X; optical fiber dust removal clean gas (optional); fiber cleaning pen liquid (optional); carrying tool bag 240×150×210 mm |
| Bag Dimensions | 240 × 150 × 210 mm |
400X endface microscope with auto focus, auto exposure, auto analysis and auto Excel reporting. IEC 61300-3-35 compatible.
| Magnification | 400X |
| Automation | Auto focus, auto exposure, auto centering, auto analysis, auto report, auto image transmission |
| Reporting Format | Excel |
| Standard | IEC 61300-3-35 |
| Status Indication | LED |

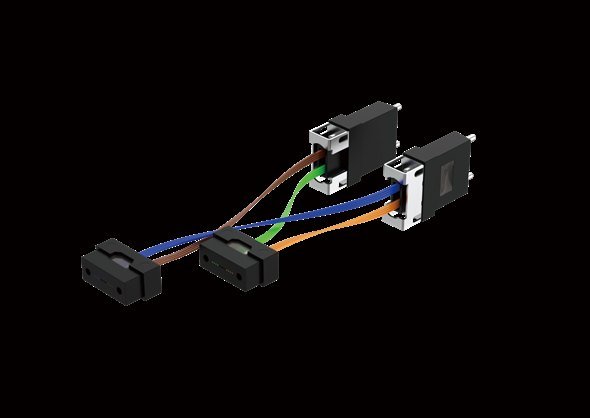

Passive optical interconnect jumper for QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro QSFP, OSFP, CXP, CFP and CDFP modules.
| Connector A | MT ferrule with guide pin |
| Connector B | MT ferrule |
| Fiber Shape | Ribbon / single fibers |
| Fiber Counts | 8F / 12F / 16F / 24F |
| Fiber Type | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20–100 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Coupling Mode | Passive coupling with guide pins at 0° and 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
42.5° total reflection fiber array as the RX receiving end, coupling directly with the PD array for optical-to-electrical conversion.
| Operating Wavelength | 850–1650 nm |
| Insertion Loss | <0.5 dB |
| Return Loss | ≥50 dB |
| Operating Temperature | -40°C to 85°C |
| Pitch Error | <1.0 µm (0.3, 0.5, 0.7, 1.0 µm customizable by channel number accuracy) |
PM fiber in a V-groove array substrate maintaining the same polarization direction for high-density parallel transmission.
| Fiber Spacing | 127 µm or 250 µm or customized |
| Fiber Core Position Tolerance | ≤0.5 µm or customized |
| Fiber Type | PM 1310 nm / 1550 nm or customized |
| Polishing Angle | 0°–45° |
| Fiber Counts | Customized |
| Extinction Ratio | ≥18 dB |
| Standards | GR1209 / GR1221, RoHS |
| Operating Temperature | -5°C to 70°C |

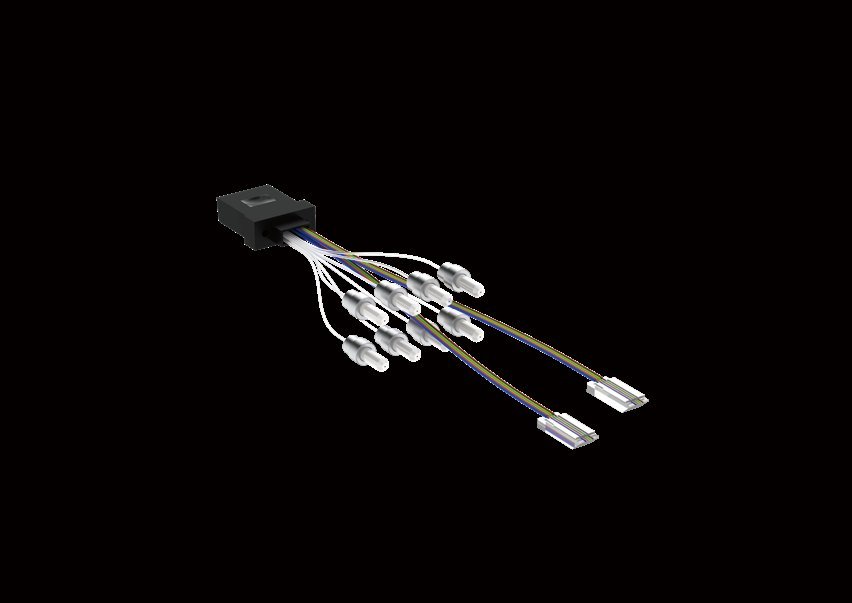

Passive optical interconnect jumper with MT ferrule and MT&SUS or FA&SUS termination, for 40G and 100G modules.
| Connector A | MT ferrule with guide pin |
| Connector B | MT&SUS or FA&SUS, customised size/angle available for FA |
| Fiber Shape | Ribbon |
| Fiber Counts | 4F / 8F / 12F / 16F / 24F |
| Fiber Type | G657B3 |
| Length | 20–100 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Coupling Mode | Passive with guide pins at 0° and 8°; active with light source at 0°, 8°, 42.5° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |

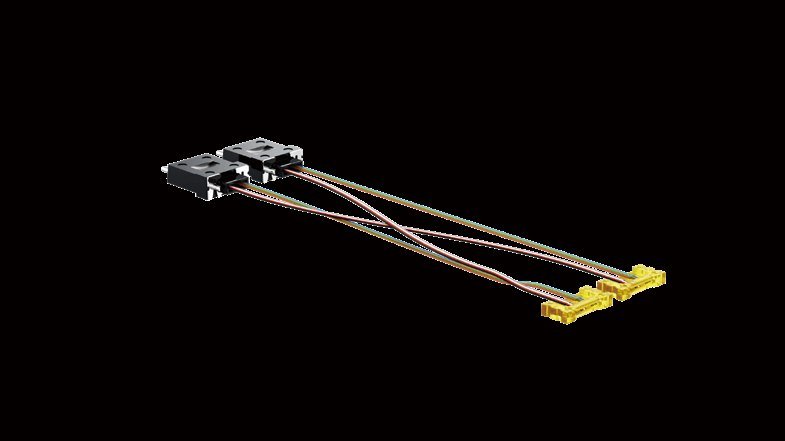

Passive optical interconnect jumper supporting 200G and 400G, with customised jumper/lens or lensed MT connector B.
| Connector A | MT ferrule with guide pin |
| Connector B | Customised jumper/lens, Usconect Prizm / lensed MT |
| Fiber Shape | Ribbon |
| Fiber Counts | 2F / 4F / 8F / 12F / 16F / 24F |
| Fiber Type | OM3, OM4, OM5 |
| Length | 20–100 mm, customised length available |
| Length Tolerance | ±0.30 to ±0.50 mm |
| Coupling Mode | Passive with guide pins at 0°, 8°, 10°; active laser-cut and polish coupling at 0°, 8° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |

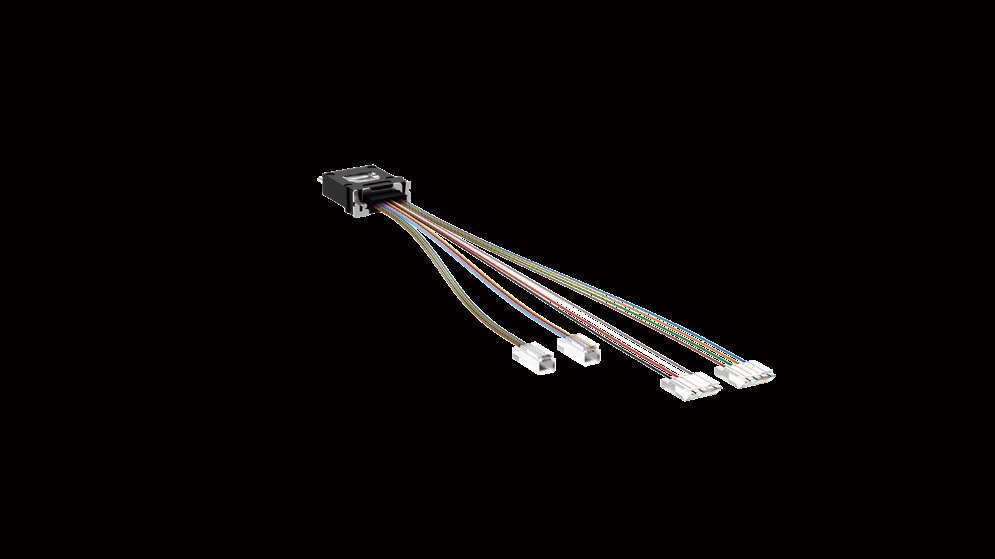

Fiber-array to MT assembly with active light-source coupling from 0° to 45°, supporting 200G, 400G and 800G.
| Connector A | MT ferrule with guide pin |
| Connector B | FA, customised size/angle available |
| Fiber Shape | Ribbon / single fibers |
| Fiber Counts | 12F |
| Fiber Type | OM3, OM4, G657B3 |
| Length | 20–100 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Coupling Mode | Active with light source 0°–45°; 0°, 8°, 42.5° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
Low-loss coupling to waveguides with smaller mode fields by splicing ultra-high-NA fiber to standard NA fiber (3.2–5.5 µm to 9 µm).
| Insertion Loss | ≤0.30 dB |
| Substrate Material | Quartz, BF33 and others |
| Fiber Spacing | 127 µm or 250 µm or customized |
| Fiber Core Position Tolerance | <0.5 µm or customized |
| Mode Field Diameter | 3.2 µm, 3.3 µm or customized |
| Polishing Angle | 0°–45°, or customized |
| Fiber Type | SM |
| Number of Channels | Customized |
| Operating Temperature | -5°C to 70°C |
Fiber Array Unit with integrated lens array, enhancing coupling efficiency between optical chips (PICs) and fibers through focusing and collimation.
| Reliability Standards | MIL-STD-883G, GR-1221 |
| Validation | PCT 168H testing |
| Customization | Channel count, core pitch, polishing angle |
| Beam Control | Collimation and focusing with precision angle control |
Optical isolator integrated onto the output end face of a Fiber Array, ensuring irreversible light propagation.
| Operating Wavelength | 1270–1610 nm |
| Insertion Loss (Single Stage, Max) | 0.3 dB (typical 0.2) |
| Insertion Loss (Dual Stage, Max) | 0.5 dB (typical 0.3) |
| Isolation (Single Stage, Min) | 35 dB (typical 40) |
| Isolation (Dual Stage, Min) | 55 dB (typical 60) |
| Clear Aperture | CA 0.3 mm (min) |
| Power Handling | 500 mW (max) |
| Return Loss | >32 dB |
Passive interconnect jumper connecting optical modules, optical FPGA and silicon photonic chips installed on PCB.
| Connector A | MPO |
| Connector B | Customised jumper / lens |
| Fiber Shape | Ribbon |
| Fiber Count | 12F |
| Fiber Type | OM2, OM3, OM4 |
| Length | 50–100 mm, customised length available |
| Length Tolerance | ±0.5 mm |
| Coupling Mode | Passive with guide pins at 0°, 8°; active and active-polish coupling at 0°, 8° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
MPO to MT ferrule passive interconnect jumper for board-mounted optical modules, FPGA and silicon photonic chips.
| Connector A | MPO |
| Connector B | MT ferrule |
| Fiber Shape | Ribbon |
| Fiber Count | 12F / 24F |
| Fiber Type | OM2, OM3, OM4 |
| Length | 50–100 mm, customised length available |
| Length Tolerance | ±0.5 mm |
| Coupling Mode | Passive coupling with guide pins at 0° and 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
MPO to customised fiber array assembly with optional 90° passive coupling for board-level optical connection.
| Connector A | MPO |
| Connector B | Customised fiber array |
| Fiber Shape | Ribbon |
| Fiber Count | 12F |
| Fiber Type | OM2, OM3, OM4, SM |
| Length | 50–80 mm, customised length available |
| Length Tolerance | ±0.5 mm |
| Coupling Mode | Passive with guide pins at 0°, 8° and 90°; active with light source at 0°, 8°, 42.5° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
MPO to mini MT ferrule AOC tail cable for board-mounted optical modules and parallel transceivers.
| Connector A | MPO |
| Connector B | Mini MT ferrule |
| Fiber Shape | Ribbon |
| Fiber Count | 12F |
| Fiber Type | OM2, OM3, OM4 |
| Length | 50–80 mm, customised length available |
| Length Tolerance | ±0.5 mm |
| Coupling Mode | Passive with guide pins at 0°, 8° and 90°; active with light source at 0°, 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |

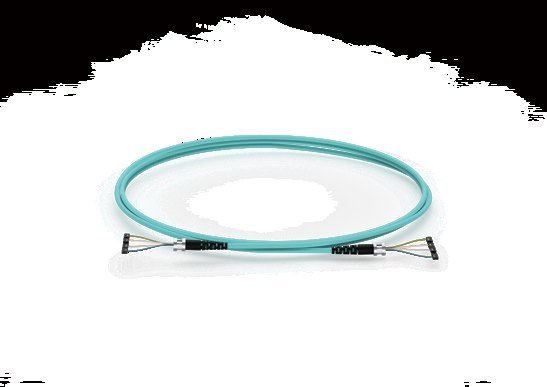

MT ferrule to MT ferrule AOC tail cable on round cable, 8F to 24F, cable lengths 1 M to 100 M.
| Connector A | MT ferrule |
| Connector B | MT ferrule |
| Fiber Shape | Round cable |
| Fiber Count | 8F / 12F / 16F / 24F |
| Fiber Type | OM2, OM3, OM4, OM5 |
| Length | 20–50 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Cable Diameter | Ø3.0 mm / Ø3.8 mm |
| Cable Jacket | LSZH / OFNR / OFNP / LSZH+OFNR |
| Cable Length | 1 M / 3 M / 5 M / 7 M … 50 M / 100 M |
| Coupling Mode | Passive coupling with guide pins at 0° and 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |

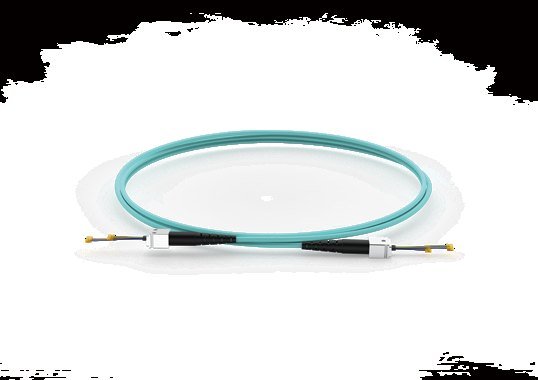

Customised jumper/lens both ends AOC tail cable on round cable, 8F to 24F, cable lengths 1 M to 100 M.
| Connector A | Customised jumper / lens |
| Connector B | Customised jumper / lens |
| Fiber Shape | Round cable |
| Fiber Count | 8F / 12F / 16F / 24F |
| Fiber Type | OM2, OM3, OM4, OM5 |
| Length | 20–60 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Cable Diameter | Ø3.0 mm / Ø3.8 mm |
| Cable Jacket | LSZH / OFNR / OFNP / LSZH+OFNR |
| Cable Length | 1 M / 3 M / 5 M / 7 M … 50 M / 100 M |
| Coupling Mode | Passive with guide pins at 0°, 8° and 90°; active with light source at 0°, 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |

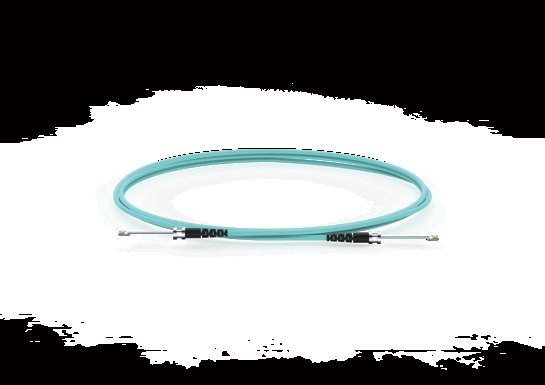

Customised fiber array both ends AOC tail cable on round cable, 8F to 24F, single-mode and multimode.
| Connector A | Customised fiber array |
| Connector B | Customised fiber array |
| Fiber Shape | Round cable |
| Fiber Count | 8F / 12F / 16F / 24F |
| Fiber Type | OM2, OM3, OM4, OM5, SM |
| Length | 20–50 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Cable Diameter | Ø3.0 mm / Ø3.8 mm |
| Cable Jacket | LSZH / OFNR / OFNP / LSZH+OFNR |
| Cable Length | 1 M / 3 M / 5 M / 7 M … 50 M / 100 M |
| Coupling Mode | Active with light source at 0°, 8°, 42.5° as customer designed |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
2×LC ferrule both ends AOC tail cable, 2F ribbon, Ø3.0 mm round cable, lengths 1 M to 100 M.
| Connector A | 2× LC ferrule |
| Connector B | 2× LC ferrule |
| Fiber Shape | Ribbon |
| Fiber Count | 2F |
| Fiber Type | OM1, OM2 |
| Length | 20–50 mm, customised length available |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
| Cable Diameter | Ø3.0 mm |
| Cable Jacket | LSZH / OFNR / OFNP / LSZH+OFNR |
| Cable Length | 1 M / 3 M / 5 M / 7 M … 50 M / 100 M |
| Coupling Mode | Passive coupling with guide pins at 0° and 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
MPO to customised fiber array AOC assembly, 12F ribbon, 50–80 mm, for board-level optical connection.
| Connector A | MPO |
| Connector B | Customised fiber array |
| Fiber Shape | Ribbon |
| Fiber Count | 12F |
| Fiber Type | OM2, OM3, OM4, SM |
| Length | 50–80 mm, customised length available |
| Length Tolerance | ±0.5 mm |
| Coupling Mode | Passive with guide pins at 0°, 8° and 90°; active with light source at 0°, 8° |
| Insertion Loss (MT) | ≤0.60 dB, typical 0.20 dB |
| Return Loss (MT) | ≥20 dB |
| Operating Temperature | -40°C to +85°C |
Armoured
Single-mode (G.652D / OS2) uni-tube outdoor fibre optic cable, corrugated ECCS-tape armoured with an HDPE outer sheath. 2 to 24 fibres, UV-stabilised with optional anti-rodent and anti-termite protection, for indoor and outdoor use.
| Standards | ANSI/TIA-568.3-E, ITU G.652D, IEC 60793, IEC 60794, ANSI/ICEA S-87-640 |
| Cable Type | OS2 loose tube, suitable for indoor & outdoor application |
| Fibre Type | Single mode (G.652D) |
| Primary Coating Material | UV-cured acrylate |
| No. of Loose Tubes | 1 |
| Loose Tube Colour | Natural |
| Loose Tube Material | PBT loose tube filled with thixotropic jelly |
| Moisture Barrier | Water swellable yarn |
| Peripheral Strength Member | Glass yarn |
| Armouring | Corrugated ECCS tape |
| Minimum Armour Tape Thickness | 0.14 mm |
| Outer Sheath Material | HDPE |
| Additional Sheath Properties | UV stabilised (UV-S), UV resistant (UV), anti-rodent (AR), anti-termite (AT) — by article number |
| Nominal Outer Sheath Thickness | 1.80 mm |
| No. of Ripcords / Material | 2, placed under armour / polyester |
| Fibre Count Range | 2, 4, 6, 8, 12, 16, 24 fibres |
| Sheath Colour Options | Black (RAL 9005), Grey (RAL 7001), Yellow (RAL 1021) |
| Cable Diameter | 9.0 ± 0.5 mm (2–12F); 9.5 ± 0.5 mm (16–24F) |
| Loose Tube Diameter | 2.5 ± 0.12 mm (2–12F); 3.0 ± 0.15 mm (16–24F) |
| Cable Weight | 80 ± 10 kg/km (2–12F); 85 ± 10 kg/km (16–24F) |
| Standard Packing Length | 2 km |
| Standard Packing Material | Non-returnable wooden drum |
| Attenuation at 1310 nm (cabled) | ≤ 0.36 dB/km |
| Attenuation at 1550 nm (cabled) | ≤ 0.25 dB/km |
| Minimum Bending Radius (installation) | 20 × cable diameter |
| Minimum Bending Radius (installed, long term) | 10 × cable diameter |
| Maximum Tensile Load (installation) | 2670 N (600 lbf) |
| Tensile Performance (IEC 60794-1-21-E1) | 3000 N max; fibre strain ≤0.6%; attenuation change ≤0.05 dB |
| Crush Strength (IEC 60794-1-21-E3) | 3000 N / 100 mm; attenuation change ≤0.05 dB |
| Impact (IEC 60794-1-21-E4) | 0.5 m height, 2.5 kg, 3 impacts; no cracks or fibre damage; attenuation ≤0.05 dB |
| Torsion (IEC 60794-1-21-E7) | ±180°, 10 cycles under tension; no cracking; attenuation ≤0.05 dB |
| Temperature Cycling (IEC 60794-1-22-F1) | -40°C to +70°C, 2–3 cycles; attenuation change ≤0.05 dB |
| Drip Compound Flow (IEC 60794-1-21-E14) | No gel drip at 70–80°C for 24 hours |
| Water Penetration (IEC 60794-1-22-F5B/F5C) | Water head 1 m, 24 hr; migration ≤3 cm; attenuation change ≤0.05 dB |
| Installation Temperature | -30°C to +60°C |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
Let us help you develop and manufacture quality products. One company. Full accountability. From product development to global delivery — we handle everything.
