Ethernet fiber switches, rack mount and standalone media converters and optical network units for fiber access networks.
Managed 10/100/1000M auto-sensing fiber switch with RJ45 and SFP sockets, VLAN and QoS support.
| Standards | IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX |
| QoS & VLAN | IEEE 802.1q, IEEE 802.1p QoS, IEEE 802.1d Spanning Tree |
| Bandwidth (RJ45) | 10/100 Mbps; 10/100/1000 Mbps |
| Bandwidth (Optical) | 155 Mbps (100M); 1.25 Gbps (1000M) |
| Operation Mode | Full and half duplex |
| Connectors | UTP RJ-45; fiber SC, ST, FC, LC |
| Power Supply | AC 110–250 V / 50 Hz; DC 5 V 2 A |
| Power Consumption | ≤5 W |
| Working Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 90% non-condensing |
| TP Cable | Cat5 UTP, up to 100 m |
| Fiber Cable (SM) | 8.3/125, 8.7/125, 9/125, 10/125 µm — up to 20–120 km |
| Fiber Cable (MM) | 50/125, 62.5/125 µm — up to 2 km or 5 km |
| MTBF | >60,000 hours |
| Emission/Safety | FCC Part 15 Class A, RoHS and CE |

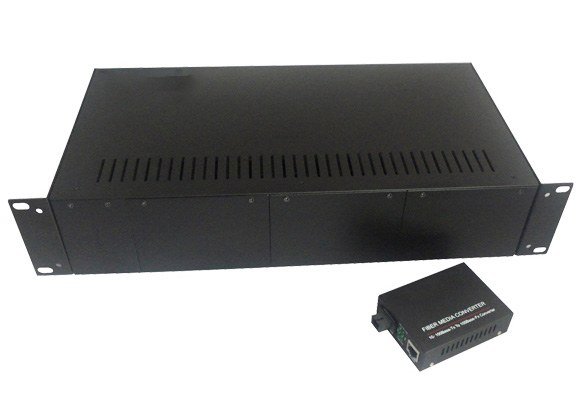

19-inch 2U chassis taking 14 or 16 hot-pluggable media converter cards with centralised power and web management.
| Chassis | 19-inch, 2U, 14 or 16 slots |
| Access Method | 1 × 10/100/1000M RJ45; 1 × 1000Base-FX |
| Standards | IEEE802.3, 802.3u, 802.3z, 802.3x |
| Wavelength | 850 nm / 1310 nm / 1550 nm; DWDM and CWDM per ITU-T |
| Connectors | SC, FC, ST, LC |
| Power Dissipation | <3 W |
| Power Input | AC 100–260 V, 50–60 Hz; or DC 48 V |
| Power Output | DC +5 V 12 A (single power) or 24 A (dual power) |
| Power Protection | Circuit breaker for over voltage, over current, over flow and short circuit |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 90% |
| Chassis Dimensions | 485 × 245 × 90 mm |
| Card Dimensions | 112.8 (W) × 77.2 (D) × 23 (H) mm |
| Colour | Black or silver |

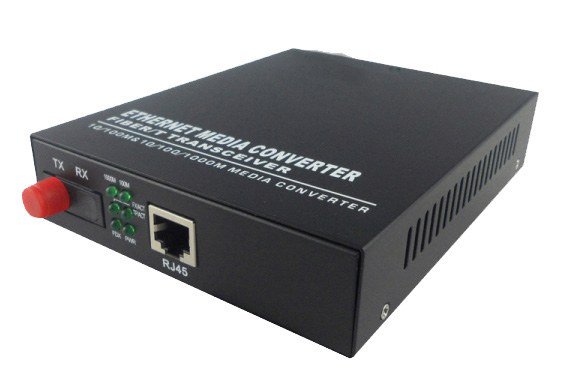

Standalone copper-to-fiber media converter extending Gigabit Ethernet up to 120 km over single-mode fiber.
| Standards | IEEE802.3, 802.3u, 802.3x, 802.3z, 802.3ab; 10Base-T/SX/LX; 100Base-T/SX/LX |
| QoS & VLAN | IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Transfer Rate (electrical) | 10 / 100 / 1000 Mbps |
| Transfer Rate (fiber) | 1.25 G |
| Interface | SC, FC, ST |
| Operation Mode | Full or half duplex |
| Multimode Fiber | 50/125, 62.5/125 µm — up to 2 km |
| Single Mode Fiber | 8.3/125, 8.7/125, 9/125, 10/125 µm — up to 120 km |
| Power Supply | AC 180–260 V; DC -48 V; DC +24 V |
| Power Consumption | ≤3 W |
| Dimensions | 95 (W) × 70 (D) × 26 (H) mm |
| Working Temperature | -10 to 50 °C |
| Storage Temperature | -40 to 80 °C |
| Humidity | 5% to 95% non-condensing |
Last-metre ONU for FTTx access with 128-bit AES encryption, DBA support and single fiber WDM.
| Standards | IEEE 802.3ah, 802.3, 802.3u, 802.3x, 802.3z, 802.1d, 802.1p, 802.1q, 802.1x; RFC1155, RFC1112, RFC1113 |
| Security | 128-bit AES encryption |
| Bandwidth | 10/100/1000 M |
| Power Supply (desktop) | DC 12 V |
| Power Supply (rack) | -48 V distributing DC (-40 V to -57 V) or 100–240 V AC |
| Frame (rack version) | 19 inch, 1U height |
| Weight (desktop) | <500 g |
| Dimensions (desktop) | 130 × 115 × 35 mm |
| Dimensions (rack) | 440 × 207 × 43 mm |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -30 to 60 °C |
| Humidity | 10% to 90% non-condensing |
| Features | Ethernet switch, frame filtering and suppression, DBA, single fiber WDM, multicast |
