Other Passive Optical Components

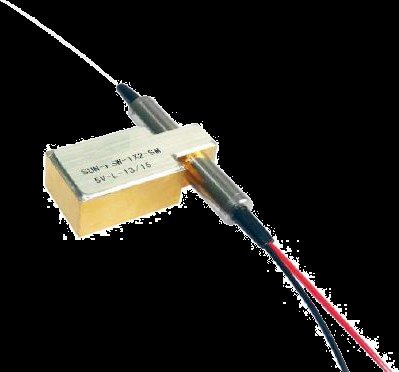

1×2 Mechanical Optical Switch

Latching or non-latching 1×2 mechanical switch covering 1260–1650 nm with over 10 million cycle durability.

Wavelength Range	1260–1650 nm
Test Wavelength	1310 and 1550 nm
Insertion Loss	≤0.8 dB (typical 0.6 dB)
Wavelength Dependent Loss	≤0.25 dB
Return Loss	≥50 dB (typical 55 dB)
Crosstalk	≥55 dB (typical 60 dB)
Polarization Dependent Loss	≤0.05 dB (typical 0.03 dB)
Temperature Dependent Loss	≤0.2 dB
Repeatability	≤±0.02 dB
Operating Voltage	5 VDC
Durability	≥10 million cycles
Switching Time	≤8 ms
Optical Power	≤500 mW
Operating Temperature	-20 to +70 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	≤85%
Dimension	27.0 (L) × 12.6 (W) × 8.0 (H) ±0.2 mm
Configurations	Latching or non-latching

≥10M cycles ≤8 ms 1260–1650 nm

2×2 Mechanical Optical Switch

Latching or non-latching 2×2 mechanical switch for optical protection and add/drop reconfiguration.

Wavelength Range	1260–1650 nm
Test Wavelength	1310 and 1550 nm
Insertion Loss	≤1.0 dB (typical 0.8 dB)
Wavelength Dependent Loss	≤0.25 dB
Return Loss	≥50 dB (typical 55 dB)
Crosstalk	≥55 dB (typical 60 dB)
Polarization Dependent Loss	≤0.05 dB (typical 0.03 dB)
Temperature Dependent Loss	≤0.2 dB
Repeatability	≤±0.02 dB
Operating Voltage	5 VDC
Durability	≥10 million cycles
Switching Time	≤8 ms
Optical Power	≤500 mW
Operating Temperature	-20 to +70 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	≤85%
Dimension	27.0 (L) × 12.6 (W) × 8.0 (H) ±0.2 mm
Configurations	Latching or non-latching

2×2 ≥10M cycles OADM ready

Uni-directional TAP-PD Monitor

Integrated tap coupler and photodiode for C/L band channel monitoring, with 1%, 2% and 5% tap ratios.

Operating Wavelength	C/L band
Tap Ratios	1%, 2%, 5%
Maximum Input Power	25 dBm (1%); 22 dBm (2%); 18 dBm (5%)
Responsivity	7–12, 14–24, 40–60 mA/W
Insertion Loss	0.5 / 0.6 / 0.7 dB max
Wavelength Dependent Loss	0.3 dB max
Temperature Dependent Loss	0.3 dB max
Return Loss	40 dB min
Directivity	25 dB min
Polarization Dependent Loss	0.2 dB max
Dark Current at 25 °C	1 nA max
Reverse Voltage	20 V max (typical 5 V)
Operating Temperature	0 to +70 °C
Storage Temperature	-40 to +85 °C
Package Dimension	27.5 × 5.6 mm

1/2/5% tap C/L band Integrated PD

Mini TAP-PD Monitor

Miniature integrated tap and photodiode monitor in a 17 × 3.2 mm package for compact module designs.

Operating Wavelength	C/L band
Tap Ratios	1%, 2%, 5%
Maximum Input Power	25 dBm (1%); 22 dBm (2%); 18 dBm (5%)
Responsivity	7–15, 14–26, 40–60 mA/W
Insertion Loss	0.5 / 0.6 / 0.7 dB max
Wavelength Dependent Loss	0.3 dB max
Temperature Dependent Loss	0.3 dB max
Return Loss	45 dB min
Polarization Dependent Loss	0.1 dB max
Dark Current at 25 °C	1 nA max
Reverse Voltage	20 V max (typical 5 V)
Operating Temperature	0 to +70 °C
Storage Temperature	-40 to +85 °C
Package Dimension	17 × 3.2 mm

17 × 3.2 mm 1/2/5% tap Telcordia

1310/1550/1590 nm In-Line Isolator

Single and dual stage in-line isolators at 1310, 1550 and 1590 nm, in standard and mini package sizes.

Centre Wavelength	1310 / 1550 / 1590 nm
Isolation (single stage)	30 dB min (Grade P); 28 dB min (Grade A)
Isolation (dual stage)	45 dB min (Grade P); 43 dB min
Isolation at ±15 nm	22 dB min (single); 42 / 40 dB min (dual)
Insertion Loss (single stage)	0.4 dB typical (Grade P); 0.5 dB (Grade A)
Insertion Loss (dual stage)	0.5 / 0.55 dB typical
Insertion Loss at ±15 nm	0.5 to 0.7 dB max
Return Loss (input/output)	60/55 dB min (Grade P); 55/55 dB min (Grade A)
Polarization Dependent Loss	0.05 to 0.1 dB max
Polarization Mode Dispersion	0.05 ps max
Operating Temperature	0 to +70 °C
Storage Temperature	-40 to +85 °C
Maximum Power Handling	500 mW
Package Dimension	Standard 40 × 5.5 mm; mini 26 × 3.0 mm

1310/1550/1590 Up to 45 dB Mini size option

1064 nm In-Line Isolator

Single and dual stage 1064 nm in-line isolator with up to 45 dB isolation and 150 mW power handling.

Centre Wavelength	1064 nm
Isolation at ±15 nm	25 dB min (single stage); 45 dB min (dual stage)
Insertion Loss	1.8 dB typical (single stage); 3.5 dB typical (dual stage)
Insertion Loss at ±15 nm	2.5 dB max (single stage); 4.5 dB max (dual stage)
Return Loss (input/output)	55/55 dB min
Polarization Dependent Loss	0.1 dB max
Operating Temperature	0 to +70 °C
Storage Temperature	-40 to +85 °C
Maximum Power Handling	150 mW
Package Dimension	40 × 5.5 mm
Package Size	Standard size

1064 nm Up to 45 dB Single & dual

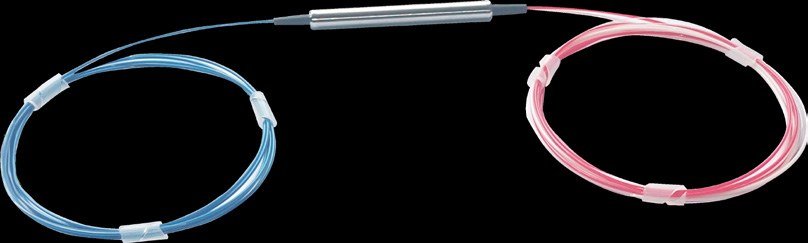

Optical Circulator

Three-port 1550 nm circulator with ultra low PDL and PMD, Telcordia GR-1221 and 1209 qualified.

Configuration	Port 1 to port 2 to port 3
Operating Wavelength	1550 ±30 nm
Insertion Loss	1.00 dB typical; 1.20 dB maximum
Channel Peak Isolation	50 dB min
Channel Minimum Isolation	40 dB min
Channel Cross Talk	50 dB min
Return Loss	50 dB min
Polarization Dependent Loss	0.15 dB max
Polarization Mode Dispersion	0.10 ps max
Power Handling	300 mW max
Pigtail	0.9 mm loose tube with FC/UPC connector
Fiber Type	SMF-28e
Fiber Length	≥50 cm
Operating Temperature	0 to 70 °C
Storage Temperature	-40 to 85 °C
Package Dimension	Ø5.5 × L50 mm
Port Options	3 port and 4 port
Qualification	Telcordia GR-1221 and 1209

3-port 1550 ±30 nm GR-1221

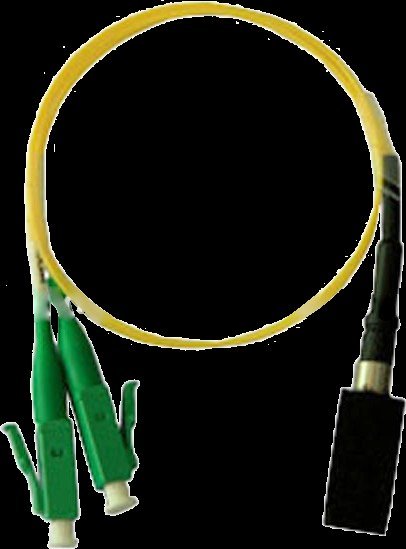

PD-WDM

Integrated WDM and photodiode assembly with 2.5 GHz bandwidth for EDFA monitoring applications.

Pass Channel Wavelength Range	1260–1360 nm
Reflection Channel Wavelength	1540–1560 nm and 1480–1500 nm
Responsivity	0.90 min, 0.95 typical at 1550 nm
Bandwidth	2.5 GHz min, 3.2 GHz typical
IMD2	70 dBc
IMD3	80 dBc
Operating Voltage	5 V typical, 20 V max
Frequency Bandwidth	5 to 6 GHz
Frequency Response	-0.5 to 0.5 dB
Dark Current	1 nA
Capacitance	0.7 pF
Insertion Loss (com-reflection)	≤0.5 dB
Isolation (com-pass)	≥25 dB
Isolation (com-reflection)	≥15 dB
Return Loss	≥45 dB
Directivity	≥50 dB
Polarization Dependent Loss	≤0.1 dB
Fiber Type	SMF-28e, 250 µm bare fiber
Operating Temperature	-10 to +70 °C
Storage Temperature	-40 to +85 °C
Package Dimension	Ø5.5 × 34 mm (bare fiber); Ø5.5 × 40 mm (900 µm loose tube)

2.5 GHz EDFA monitor Integrated PD

Isolator WDM Hybrid (IWDM)

Hybrid device combining an isolator and WDM in one compact package, at 980/1550 and 1480/1550 nm.

Operating Wavelengths	980/1550 nm and 1480/1550 nm
Signal Wavelength Range	1530–1565 nm
Signal Insertion Loss (typical)	0.8 dB (single, 980/1550); 0.7 dB (single, 1480/1550)
Signal Insertion Loss (dual, typical)	0.9 dB and 0.8 dB
Signal Insertion Loss (max)	1.0 to 1.2 dB
Signal Isolation	30 dB min (single); 44 dB min (dual)
Pump Wavelength Range	960–990 nm and 1460–1490 nm
Pump Insertion Loss	0.4 dB typical; 0.6 dB max
Pump Isolation	15 dB min
Polarization Dependent Loss	0.1 dB max
Polarization Mode Dispersion	0.05 ps max
Return Loss	50 dB min
Directivity	50 dB min
Operating Temperature	0 to +70 °C
Storage Temperature	-40 to +85 °C
Maximum Power Handling	300 mW
Package Dimension	35 × 5.5 mm

Isolator + WDM 980 & 1480 pump 35 × 5.5 mm

Optical Collimator

Single and dual fiber collimators using capillary pigtail and G-Lens, with insertion loss from 0.18 dB.

Types	Single fiber and dual fiber
Operating Wavelength	1310/1550 nm, 1260–1620 nm or customised
Dual Fiber Wavelength	1310 ±20 nm, 1550 ±20 nm
Insertion Loss (single fiber)	≤0.18 dB (Premium); ≤0.20 dB (A Grade)
Insertion Loss (dual fiber)	≤0.30 dB (Premium); ≤0.35 dB (A Grade)
Return Loss	60 dB
Receive Angle	±0.15 degree
Facula Diameter	<0.5 mm
Optical Power Handling	≤500 mW
Operating Temperature	-10 to +70 °C
Storage Temperature	-40 to +85 °C
Fiber Type	SMF-28, MMF 50/125 µm or MMF 62.5/125 µm
Fiber Length	1 metre each end, 0.25 mm or 0.9 mm
Package Dimension	Ø2.78 × 10 mm or Ø3.2 × 10 mm or customised

≤0.18 dB IL Single & dual G-Lens
