Adapters, connectors, patch cords, pigtails, attenuators, fast connectors, waterproof connectors and PLC splitters for ODN and FTTx networks.

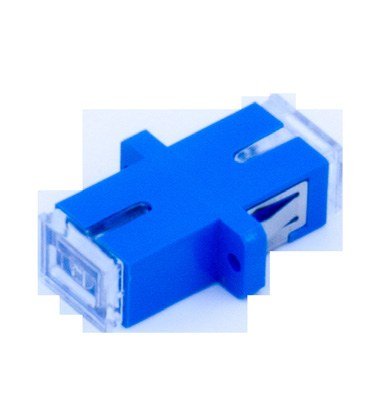

Bulkhead, male-female and hybrid adapters with high-precision sleeves, available in metal and UL94-V0 plastic housings.
| Insertion Loss | <0.20 dB |
| Durability | <0.20 dB typical change over 1000 matings |
| Operating Temperature | -40 to +80 °C |
| Housing Material | Metal or UL94-V0 flame-retardant plastic |
| Sleeve Material | Zirconia or metal |
| Options | With/without flange, shuttered SC, bare fiber adapter |
| Compliance | Telcordia, ANSI, TIA/EIA, NTT, JIS |

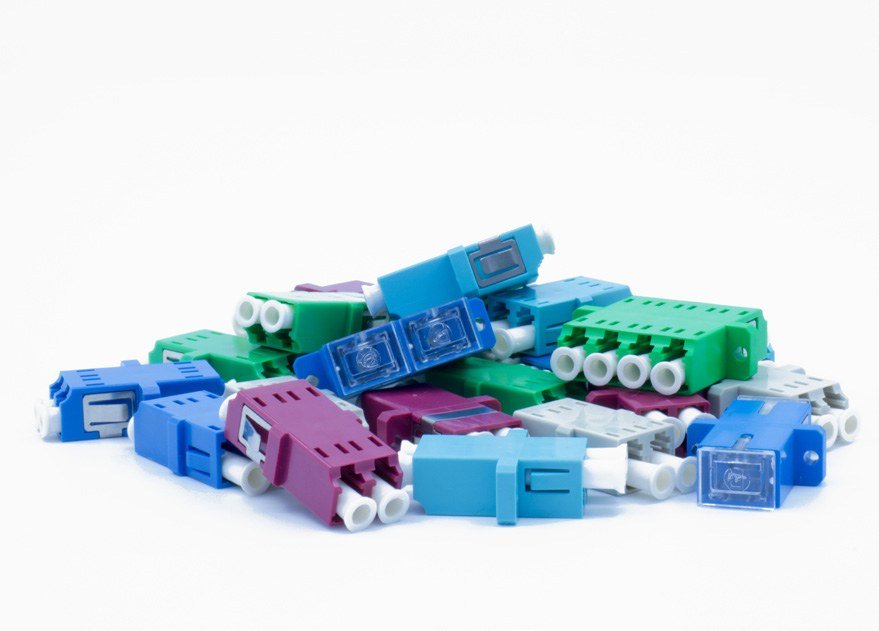

One-piece solid-body adapters with rattle-free wings, in flanged and flangeless configurations.
| Insertion Loss | <0.20 dB |
| Durability | <0.20 dB typical change over 1000 matings |
| Operating Temperature | -40 to +80 °C |
| Body | One-piece solid body |
| LC Types | Duplex with flange, duplex without flange |
| SC Types | Simplex, duplex; flanged or flangeless |
| Sleeve Type | Zirconia or metal |
| Shutter | No shutter or internal shutter |
| Colours | Blue, black, green, violet, beige, aqua |
| Compliance | Telcordia, ANSI, TIA/EIA, NTT, JIS |

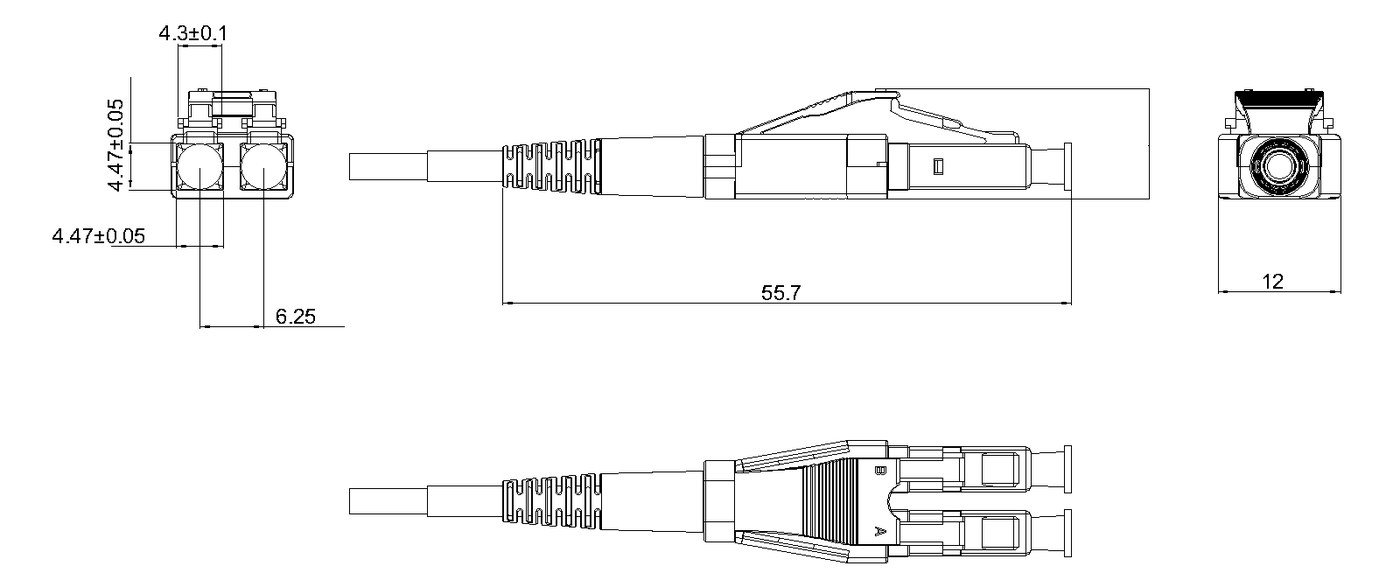

Space-saving LC duplex uniboot connector with switchable polarity and twin dismount gaps for easy field servicing.
| Insertion Loss (SM) | ≤0.30 dB |
| Insertion Loss (MM) | ≤0.30 dB |
| Return Loss | ≥50 dB (PC); ≥60 dB (APC) |
| Durability | <0.20 dB typical change over 1000 matings |
| Operating Temperature | -40 to +85 °C |
| Ferrule Hole (SM) | 125.0 / 125.5 / 126.0 +1/-0 µm, concentricity ≤1.0 µm |
| Ferrule Hole (MM) | 126 / 127 / 128 µm, concentricity ≤3.0 µm |
| Boot Options | MINI boot, flex angle boot, right-angle clip |
| Applications | Gigabit Ethernet, video, multimedia, active device termination, premise installation |

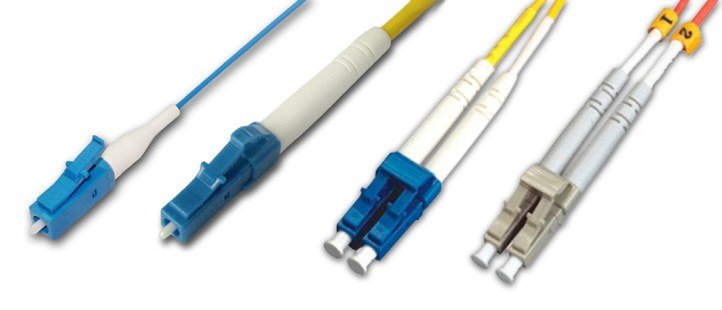

Single and multi-core patch cords and pigtails in LC, SC, ST, FC, MPO, MU, MTRJ, D4, DIN, E2000 and ESCON.
| Connector Types | LC, SC, ST, FC, MPO, MU, MTRJ, D4, DIN, E2000, ESCON |
| Standard | Telcordia GR-326-CORE |
| Modes | Single-mode and multimode |
| Polishing | PC, UPC, APC |
| Key Properties | Low insertion loss and back reflection, high exchangeability |
| Durability | High durability and temperature stability |
| Configurations | Simplex, duplex and multi-core with pulling protection |

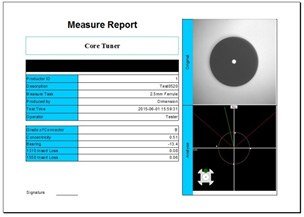

Grade A/B/C patch cords conforming to IEC 61753-1, with every Grade B connector core-tuned for low random insertion loss.
| Reference Insertion Loss (Grade A) | ≤0.1 dB |
| Reference Insertion Loss (Grade B) | ≤0.2 dB |
| Reference Insertion Loss (Grade C) | ≤0.3 dB |
| Random Insertion Loss (Grade A) | Typical ≤0.07 dB, maximum ≤0.15 dB |
| Random Insertion Loss (Grade B) | Typical ≤0.12 dB, maximum ≤0.25 dB |
| Random Insertion Loss (Grade C) | Typical ≤0.25 dB, maximum ≤0.50 dB |
| Return Loss (Grade A) | UPC ≥55 dB, APC ≥65 dB, multimode ≥30 dB |
| Return Loss (Grade B/C) | UPC ≥50 dB, APC ≥60 dB, multimode ≥30 dB |
| Mechanical Durability | Change <0.20 dB over 1000 repetitions |
| Operating Temperature | -40 to +75 °C |
| Compliance | IEC 61753-1, IEC 61300-3-34, Telcordia, RoHS, REACH |

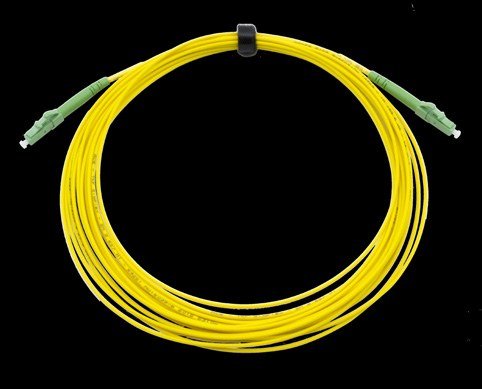

Reference-grade test jumpers with 3D-controlled ferrule geometry for insertion loss measurement in labs and production.
| Insertion Loss | ≤0.1 dB (APC and UPC) |
| Return Loss | APC ≥65 dB; UPC ≥55 dB |
| 2.5 mm Ferrule Radius (ROC) | APC 6–11 mm; UPC 12–25 mm |
| 1.25 mm Ferrule Radius (ROC) | APC 6–11 mm; UPC 7–20 mm |
| Vertex Offset | ≤30 µm |
| Angle Deviation | APC 8±0.2°; UPC 0±0.2° |
| Fibre Height | ±50 nm |
| Concentricity Offset Angle | ±45° |
| Mechanical Durability | Change <0.20 dB over 1000 repetitions |
| Operating Temperature | -40 to +75 °C |
| Connector Styles | SC, LC, FC, MU and others |

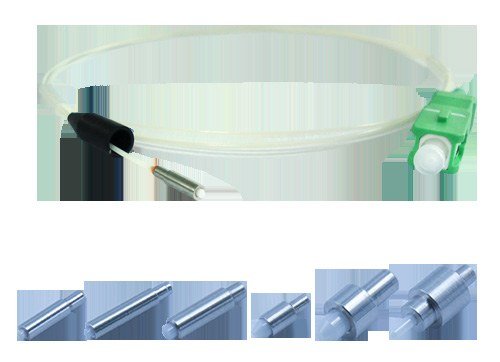

Stainless-steel ferrule pigtails for laser and photodiode module packaging, 100% optically tested.
| Insertion Loss | <0.2 dB |
| Return Loss (SPC) | >45 dB |
| Return Loss (UPC) | >55 dB |
| Return Loss (APC) | >65 dB |
| Fiber Types | 9/125 µm, 50/125 µm, 62.5/125 µm |
| Connector Types | SC, FC, ST, LC, MU, E2000 |
| Polishing | PC, APC |
| Length | 1–99 m |
| Cable Diameter | 0.9 mm, 2.0 mm |
| Testing | Optical performance 100% factory tested |

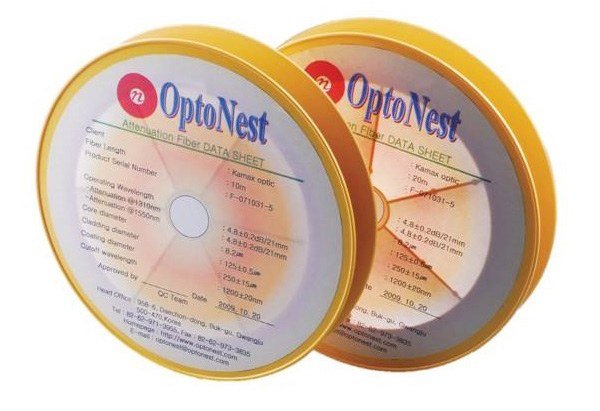

Specialty attenuation fiber with flat spectral response from 1240–1600 nm for plug and in-line attenuators.
| Core Diameter | 8–9 µm |
| Numerical Aperture | 0.12 ± 0.01 |
| Inner Cladding Diameter | 40–50 µm |
| Outer Cladding Diameter | 125 ± 0.5 µm |
| Core/Cladding Concentricity Error | ≤0.8 µm |
| Attenuation at 1310 nm | 0.1 to 30 dB (per 21 or 22.4 mm) |
| Attenuation at 1550 nm | 0.1 to 30 dB (per 21 or 22.4 mm) |
| Attenuation Tolerance | ±7.5% |
| Cut-off Wavelength | 1200–1250 nm |
| Operating Wavelength | 1310/1550 nm (1200–1650 nm) |
| Optical Power Endurance | ≤0.2 dB at 200 mW |
| Storage Temperature | -40 to +85 °C |

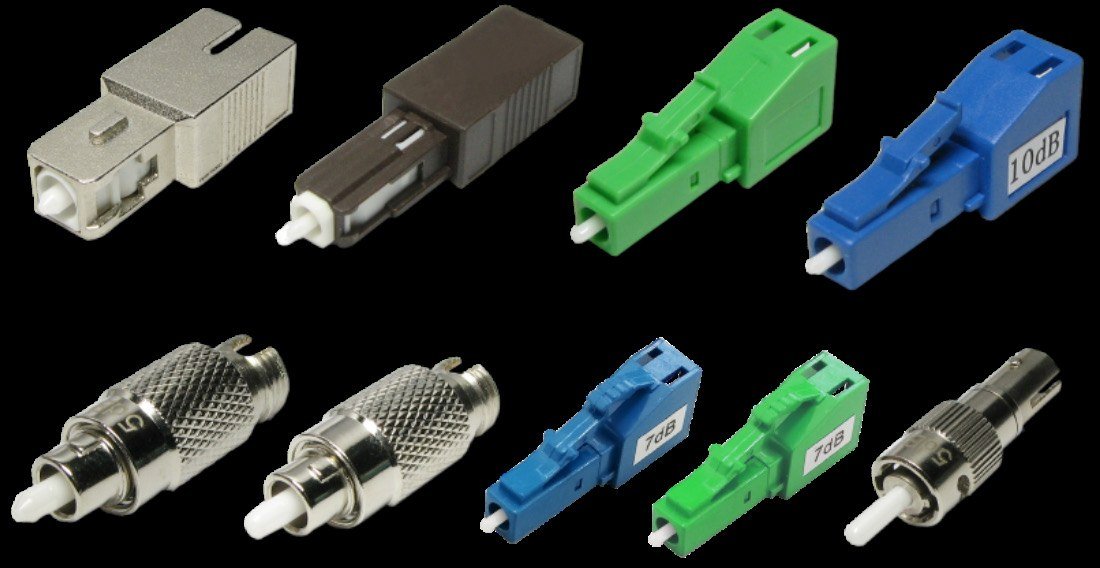

Plug-in, adapter-type and in-line fixed attenuators in 1 dB increments across all standard connector styles.
| Attenuation Range | 0–30 dB |
| Standard Values | 1, 2, 3, 5, 10, 15, 20 dB or optional |
| Wavelengths (SM) | 1310 nm or 1550 nm; 1200–1600 nm |
| Wavelengths (MM) | 850 nm, 1300 nm |
| Return Loss | ≥50 dB (SPC/UPC); ≥60 dB (APC) |
| Attenuation Accuracy | ±0.5 dB (1–5 dB); ±10% (6–30 dB) |
| Polarization Dependent Loss | ≤0.2 dB |
| Maximum Optical Input Power | 200 mW |
| Operating Temperature | -40 to +80 °C |
| Humidity | ±0.2 dB change over 10% to 90% RH |
| Vibration | ≤0.1 dB change between 10 Hz and 55 Hz |
| Drop Test | ±0.2 dB after 8 drops (3 axes) from 1.8 m onto a hard surface |

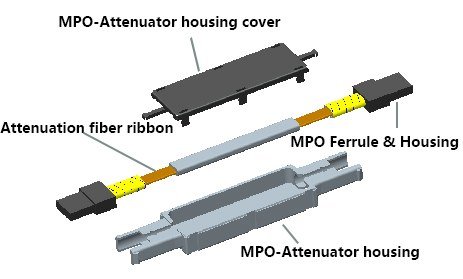

Compact MPO/MTP in-line attenuator for 40G and 100G parallel optics and QSFP applications.
| Operating Wavelength | 1310/1550 nm |
| Attenuation Range | 1–20 dB |
| Attenuation Tolerance | ±1 dB (2–10 dB); ±10% (11–20 dB) |
| Return Loss | 60 dB (8° polishing, SM) |
| Polarization Dependent Loss | ≤0.2 dB |
| Maximum Input Optical Power | 200 mW |
| Operating Temperature | -25 to +75 °C |
| Housing Dimensions | 80.0 mm (L) × 11.3 mm (W) × 8.1 mm (H) |
| Applications | Data centre, parallel optics, SAN and Fibre Channel, 40G/100G |

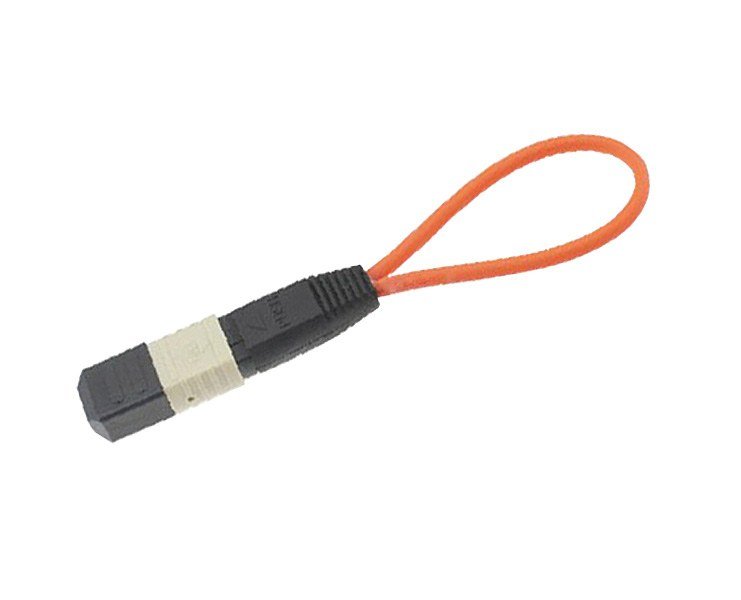

Loopback modules returning a transmit signal to the receive port for equipment testing and fault isolation.
| Insertion Loss | Less than 0.3 dB |
| Exchangeability | <0.2 dB |
| Operating Temperature | -40 to +80 °C |
| Connector Types | MPO, SC, SCA, LC, LCA, MTRJ and others |
| Mini LC Loopback Fiber | 50/125 µm, 62.5/125 µm |
| Mini LC Loopback Cable | 0.25 mm, 0.9 mm |
| Mode Types | 9 µm (SM), 62.5 µm (MM), 50 µm (MM) |
| Applications | LAN and optical equipment testing |

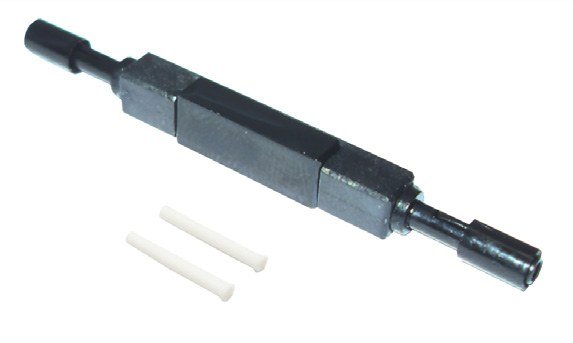

Tool-free V-groove mechanical splice for fast field jointing of drop cables, pigtails and damaged fiber.
| Fiber Type | 0.25 mm and 0.90 mm |
| Fiber Diameter | 125 µm (G.657A and G.657B) |
| Tight Buffer Diameter | 250 µm and 900 µm |
| Mode | Single-mode and multimode |
| Average Insertion Loss | ≤0.10 dB at 1310 nm and 1550 nm |
| Return Loss | ≤ -40 dB |
| Fastening Strength (naked fiber) | >5 N |
| Fastening Strength (fiber holder) | >8 N |
| Using Temperature | -40 to +75 °C |
| Repeatability (10 times) | Δ IL ≤0.2 dB, Δ RL ≤5 dB |

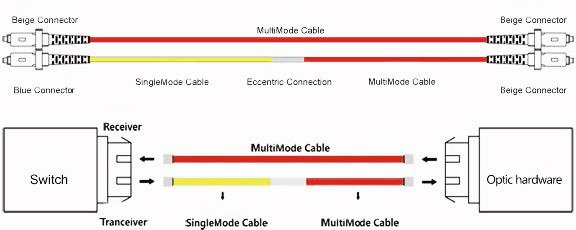

Mode-conditioning jumper that suppresses differential mode delay when running 1000Base-LX over multimode fiber.
| Application | Gigabit Ethernet 1000Base-LX over multimode fiber |
| Construction | Single-mode to multimode eccentric (offset) coupling |
| Connector Ends | Beige (multimode) and blue (single-mode) connectors |
| Function | Suppresses differential mode delay (DMD) |
| Typical Use | Switch transceiver to optical hardware over multimode cable |

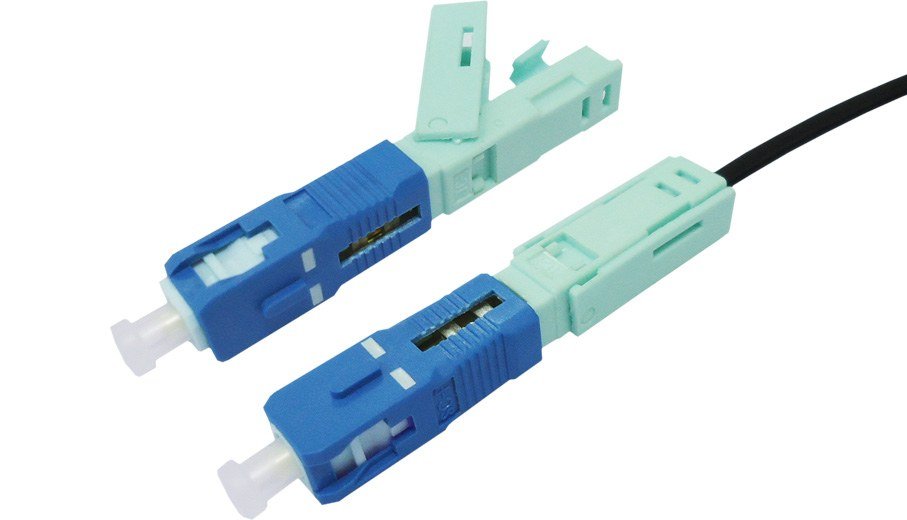

Pre-polished field installable connector for FTTH drop cable, assembled in about two minutes with no power required.
| Insertion Loss | Average ≤0.2 dB, maximum ≤0.4 dB |
| Return Loss | UPC ≥40 dB; APC ≥55 dB |
| One-time Assembly Rate | ≥97% |
| Assembly Repeatability | ≥5 times |
| Life Time | ≥10 years |
| Average Assembly Time | 3 minutes |
| Tensile Resistance | ≥30 N |
| Operating Temperature | -40 to +85 °C |
| Connector Types | SC, FC, LC |
| Site Requirements | No epoxy, no polishing, no electricity |

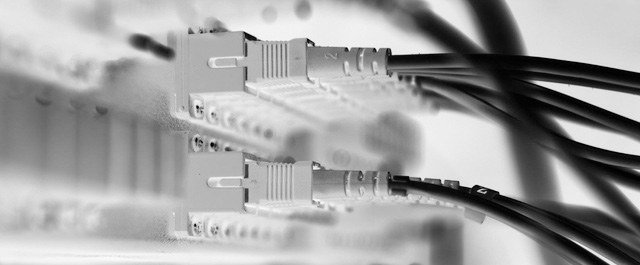

LC field installable connector for 0.9 mm indoor cable, assembled in under 100 seconds without epoxy or polishing.
| Applicable For | Indoor cable 0.9 mm |
| Optical Fiber Diameter | 125 µm (G.657A1 and G.657A2) |
| Tight Buffer Diameter | 250 µm |
| Fiber Mode | Single-mode |
| Operation Time | <100 s |
| Return Loss | >45 dB |
| Fastening Strength (naked fiber) | >4 N |
| Fastening Strength (fiber holder) | >8 N |
| Tensile Strength | >10 N |
| Using Temperature | -40 to +75 °C |
| On-line Tensile Strength (20 N) | Δ IL ≤0.5 dB, Δ RL ≤5 dB |
| Mechanical Durability (500 times) | Δ IL ≤0.5 dB, Δ RL ≤5 dB |
| Drop-off Test | 4 m height, once per direction, 3 times: Δ IL ≤0.5 dB, Δ RL ≤5 dB |

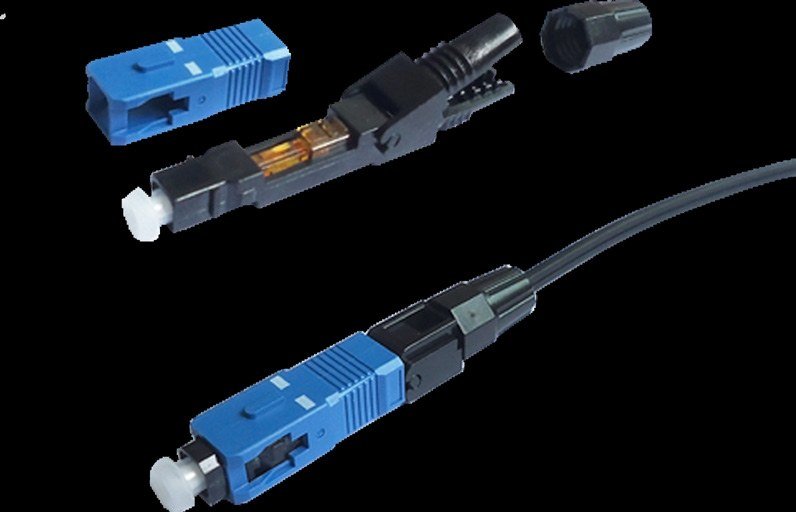

SC single-mode fast connector using ferrule-hole V-groove alignment to hold core alignment error below 0.5 µm.
| Insertion Loss | Average ≤0.2 dB, maximum ≤0.5 dB |
| Return Loss | UPC ≥40 dB; APC ≥55 dB |
| One-time Assembly Rate | ≥97% |
| Assembly Repeatability | ≥5 times |
| Life Time | ≥10 years |
| Average Assembly Time | 3 minutes |
| Tensile Resistance | ≥30 N |
| Operating Temperature | -40 to +85 °C |
| Core Alignment Error | <0.5 µm |
| Connector Type | SC |
Tool-free push-on field connector with pre-polished fiber, for single-mode and multimode, assembled in under a minute.
| Fiber Type | Single-mode and multimode |
| Insertion Loss | ≤0.4 dB (typical) |
| Return Loss | ≥50 dB |
| Polishing Type | UPC and APC |
| Operating Temperature | -40 to +70 °C |
| Connection Method | Push-on |
| Field Assembly Time | Less than 1 minute |
| Cable Tensile Test | Complies with Telcordia GR-326-CORE |
ODC, J599 and J599MPO ruggedised outdoor connectors, IP67 rated with blind-mate insertion and alignment pins.
| ODC Insertion Loss (SM) | ≤0.7 dB (typical ≤0.5 dB) |
| ODC Insertion Loss (MM) | ≤0.6 dB (typical ≤0.2 dB) |
| J599 Insertion Loss (SM) | ≤1 dB |
| J599 Insertion Loss (MM) | ≤0.75 dB |
| J599MPO Insertion Loss (SM) | ≤0.75 dB (low loss ≤0.3 dB) |
| J599MPO Insertion Loss (MM) | ≤0.6 dB (typical ≤0.2 dB) |
| Return Loss (SM) | ≥50 dB |
| Mechanical (Plug) | ODC ≤500 cable; J599 ≤1000 cable; J599MPO ≤500 cable |
| Mechanical (Branch) | ODC ≤100 N; J599 ≤100 N; J599MPO ≤30 N |
| Cable OD | ODC 5.0/4.0 mm; J599 4.0/7.0 mm; J599MPO 7.0 mm or customised |
| Branch Connector | LC, FC, SC |
| Operating Temperature | -40 to +85 °C |
| IP Rating | IP67 |
| Applications | CATV, data communication, LAN & WAN, antenna to the box, broadband, FTTP, mine, railway |

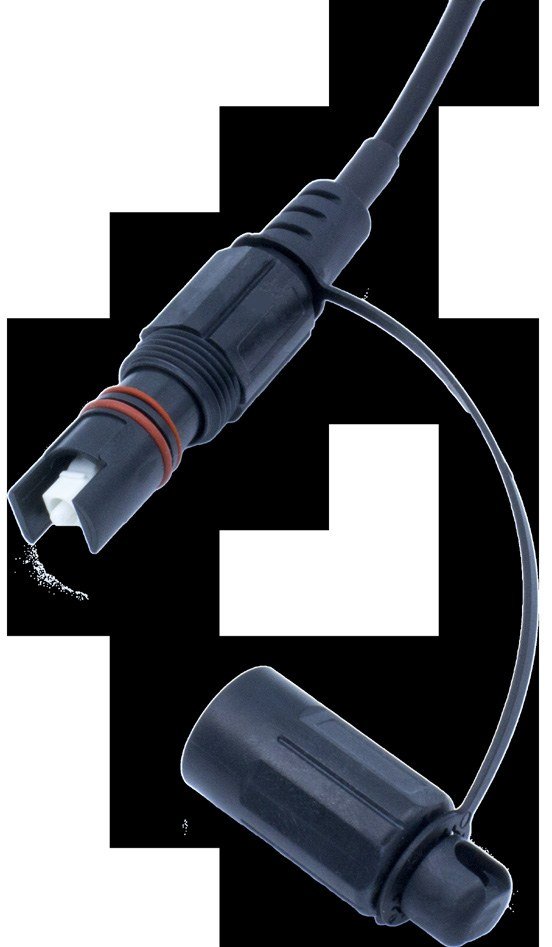

FuLLAXS, Optitap, MINI-SC, ODVA and PDLC hardened connectors, IP67/IP68, for outdoor and base station links.
| Insertion Loss (most types) | 0.2 dB (SM and MM) |
| Insertion Loss (ODVA-MPO) | 0.75 dB SM / 0.5 dB MM |
| Insertion Loss (ODVA-MPO low loss) | 0.35 dB SM and MM |
| Return Loss | 50 dB SM (60 dB SM / 25 dB MM for ODVA-MPO) |
| Cable Outer Diameter | FuLLAXS-LC 4.8 or 7.0 mm; Optitap/MINI-SC 3 or 5 mm; ODVA 3–8 mm; PDLC 3–7 mm |
| IP Rating | IP67 (FuLLAXS-LC, Optitap-SC, MINI-SC, PDLC); IP68 (ODVA series) |
| Durability | <0.2 dB typical change over 500 matings |
| Operating Temperature | -40 to +70 °C |
| Intermateability | IEC 61076-3-106 industrial adaptors |
| Applications | Outdoor fiber links, base station connection, broadband, CATV, FTTP |

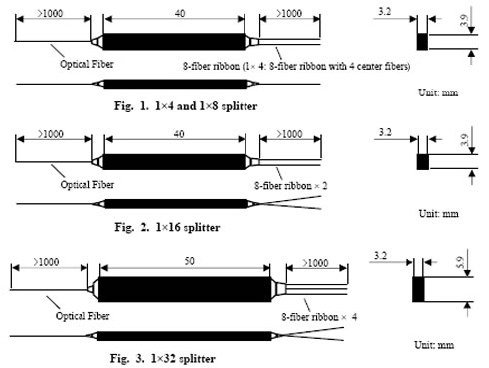

Single-mode planar lightwave circuit splitters from 1×2 to 1×64, operating across 1260–1650 nm.
| Port Configurations | 1×2, 1×4, 2×4, 1×8, 2×8, 1×16, 2×16, 1×32, 2×32, 1×64 |
| Operating Wavelength | 1260–1650 nm |
| Insertion Loss | 1×2 ≤4.3 dB; 1×4 ≤7.20 dB; 1×8 ≤10.5 dB; 1×16 ≤13.6 dB; 1×32 ≤17.0 dB; 1×64 ≤21 dB |
| Loss Uniformity | 1×2 ≤0.5 dB; 1×4 ≤0.6 dB; 1×8 ≤0.8 dB; 1×16 ≤1.4 dB; 1×32 ≤1.6 dB; 1×64 ≤2.5 dB |
| Polarization Dependent Loss | <0.2 dB (1×2); <0.3 dB; <0.5 dB (1×64) |
| Directivity | >55 dB |
| Return Loss | >55 dB |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +85 °C |
| Fiber Type | G.652D or G.657A |
