Interconnect cabinets, distribution frames, terminal boxes, distribution boxes, splice enclosures and cable management accessories.

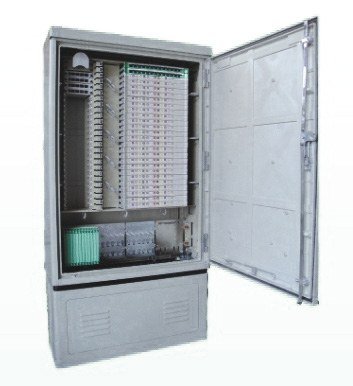

Outdoor and indoor street distribution cabinets providing fusion splice, cross connect, splitting and storage up to 576 cores.
| Capacity | 144, 288 and 576 core versions |
| 144 Core Cabinet | 1030 × 550 × 310 mm |
| 288 Core Cabinet | 1450 × 750 × 320 (360) mm |
| 576 Core Cabinet | 1450 × 750 × 550 mm |
| Concrete Base (144 core) | 530 × 290 × 200 mm; thread hole 310 × 170 × 200 mm |
| Concrete Base (288 core) | 730 × 350 × 200 mm; thread hole 510 × 230 × 200 mm |
| Concrete Base (576 core) | 730 × 550 × 200 mm; thread hole 510 × 430 × 200 mm |
| Construction | Anti-corrosive and water-proof |
| Functions | Fusion splice, cross connect, optical splitting, fiber storage |
| Design | Modular, customisable |

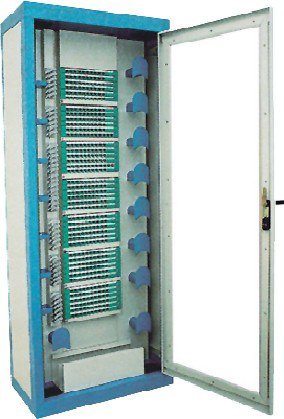

Indoor high-density distribution frames for central office and building MDF rooms, up to 792 fibers.
| Maximum Capacity | Up to 792 fibers |
| 12F Unit | Net 480 × 250 × 1U; product 465 × 285 × 75 mm; 3.1 kg |
| 48F Unit | Net 480 × 210 × 3U; product 450 × 255 × 145 mm; 6 kg |
| 72F Unit | Net 480 × 210 × 4U; product 455 × 255 × 195 mm; 7.7 kg |
| Fiber Entry | Top or bottom |
| Design | High-density, modular, tool-free operation |
| Safety | Grounding design and security door |
| Applications | Distribution network and equipment cable, indoor cable termination, building wiring, telecom and intelligent building projects |

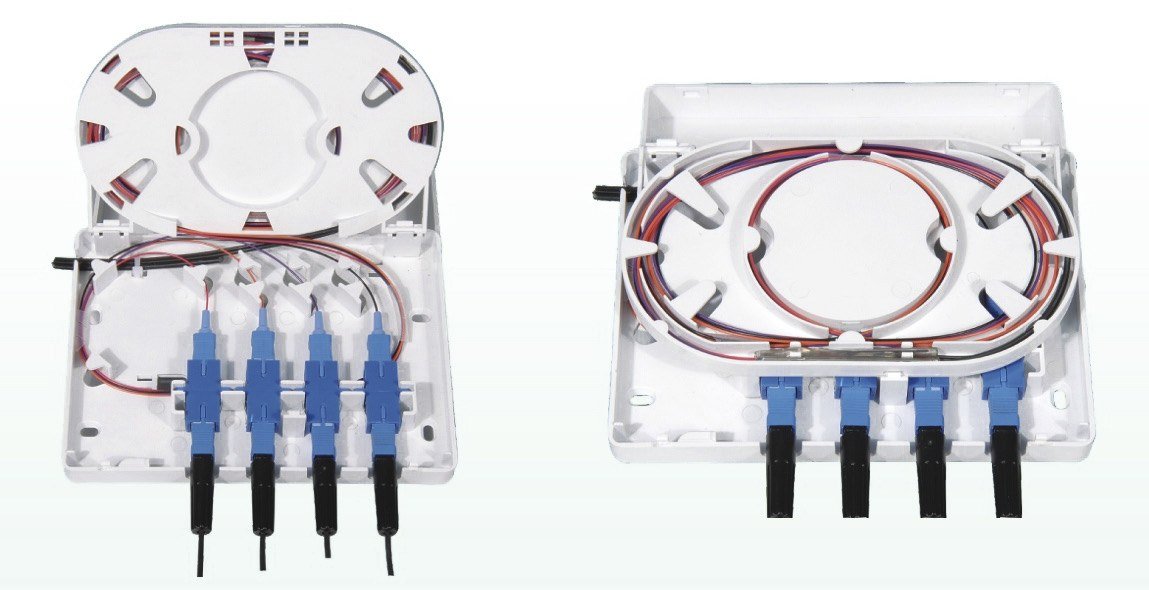

Environmentally sealed wall or pole mount terminal boxes, IP55, splicing up to 72 fibers with 2×16ch splitter capacity.
| Construction | High quality engineering plastic |
| Ingress Protection | IP55 for outdoor environment |
| Maximum Splicing Capacity | Up to 72 fibers |
| Maximum PLC Splitter | Up to 2×16 channel |
| Small Modules | FCS-2A 102×167×31 mm (2 SC / 4 LC); FCS-4A 186×116×40 mm; FCS-4B 191×120×44 mm |
| Mid Modules | FCS-8A 213×163×47 mm; FCS-8C 199×160×46 mm; FCS-12B 263×135×46.5 mm; FCS-16H 295×240×85 mm |
| Large Modules | FCS-24A 320×240×100 mm; FCS-24B 330×260×130 mm; FCS-32B / FCS-36B / FCS-48B 420×320×130 mm |
| Capacity Range | 2 to 48 SC ports; 4 to 48 LC ports |
| Mounting | Wall or pole |

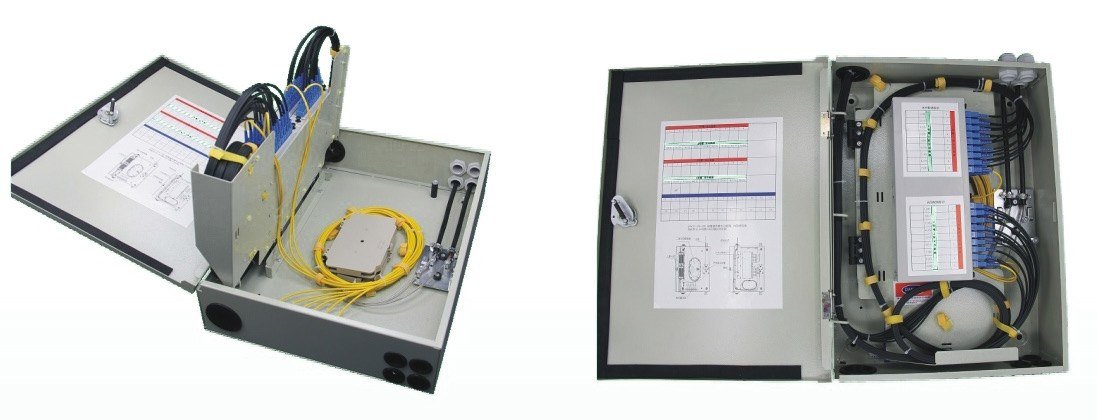

Wall-mounted metal distribution boxes for small capacity systems, splicing and splitter storage up to 72 cores.
| Maximum Capacity | Up to 72 fibers |
| Minimum Bending Radius | ≥40 mm protected fiber path |
| Cold Rolled Steel Models | 455×405×80 mm (24 core); 455×405×120 mm (48 core); 455×405×150 mm (72 core) |
| Stainless Steel Models | 455×405×120 mm (48 core); 455×405×150 mm (72 core) |
| Compact Models | 350×350×80 mm (24 core); 350×300×80 mm (12 and 24 core) |
| FSP Series | FSP-72A 550×480×120 mm (72); FSP-32B 360×345×100 mm (32); FSP-16A/B/C (16) |
| Adaptor Types | FC, SC, ST, LC |
| Finish | Electrostatic spraying |
| Functions | Fiber splice, optical splitter, cable storage |

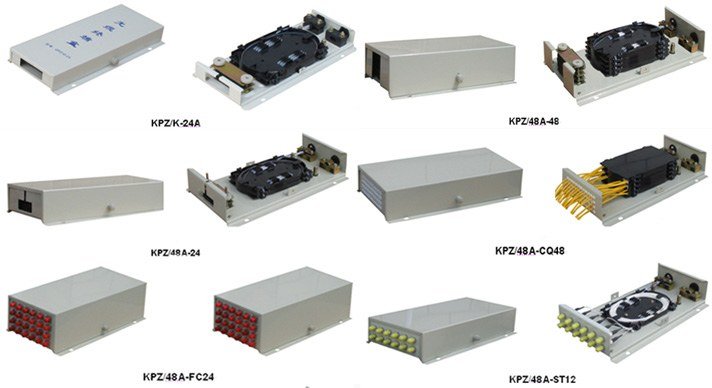

Wall-mounted indoor distribution units from 8 to 48 fibers, with adapter or pigtail output and splitter options.
| Capacity | 8 to 48 fibers |
| Output Connectors | SC, FC, ST, LC |
| Splitter Option | Up to 2×32 channel PLC splitter |
| 12 Core Models | 330 × 183 × 70 mm (FC, SC, ST versions) |
| 24 Core Models | 330 × 183 × 100 mm; 300 × 120 × 46 mm (pigtail outlet) |
| 48 Core Model | 330 × 183 × 70 mm |
| 8 Core Models | 260 × 140 × 40 mm (adaptor); 260 × 120 × 40 mm (pigtail) |
| Construction | Cold rolled steel with electrostatic spraying |
| Cable Entries | Two |

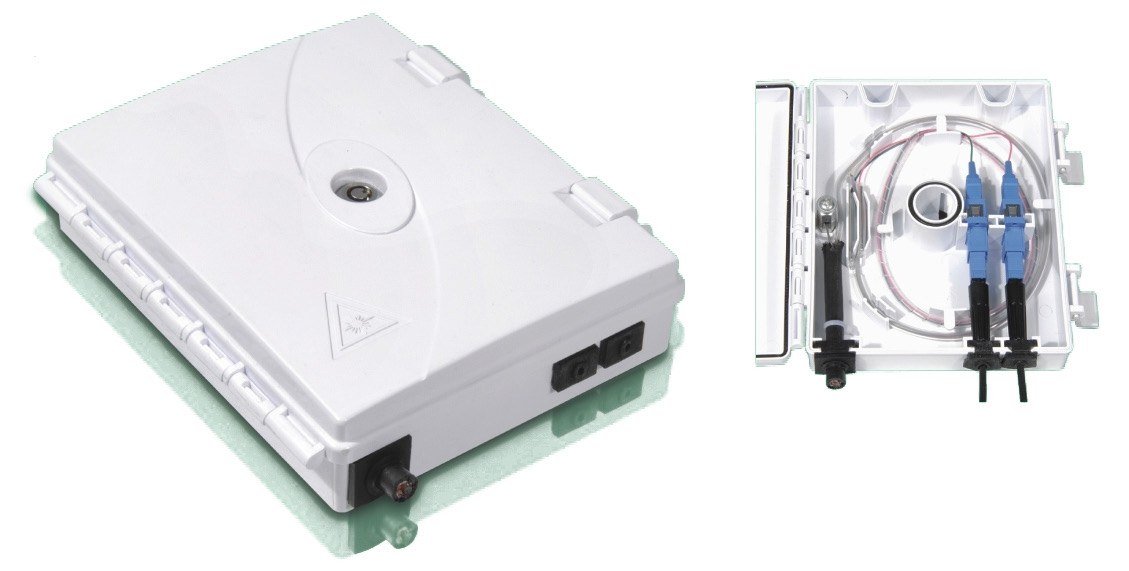

Compact indoor wall-mounted last-metre termination units for FTTH, FTTO and fiber to the desktop.
| Application | 3.0 × 2.0 mm drop cable or indoor cable |
| Fiber Diameter | 125 µm (G.652 and G.657) |
| Tight Cladding Diameter | 250 µm and 900 µm |
| Mode | Multimode or single-mode |
| Tensile Strength | >50 N |
| End-use Temperature | -40 to +85 °C |
| Adaptor | SC and FC |
| Insertion Loss | ≤0.2 dB at 1310 nm and 1550 nm |
| Capacity | 1 to 4 fibers |
| Models | FCS-2H 84×130×24 mm; FCS-2C 86×86×24 mm; FCS-4C 149×110×33 mm |
| Termination Options | FIC connector, fusion splice, splitter |

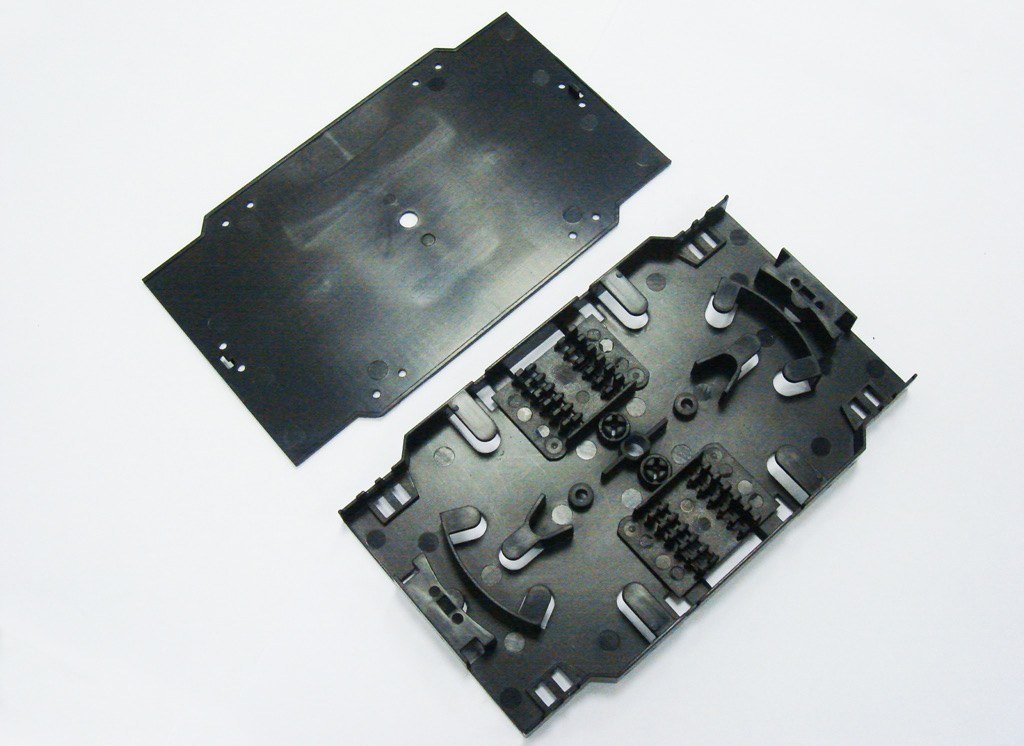

Splice trays, heatshrink protection sleeves, bend radius limiters and patch cord minders for fiber distribution.
| Splice Trays (single fiber) | 12, 16, 24 and 12/24 core versions |
| Splice Tray (ribbon fiber) | 72 core |
| Heatshrink Protection Sleeve | 60 mm and 40 mm |
| Bend Management | Fiber bend radius limiter, patch cord minder loop and device |
| Other Items | Fiber storage trays, retainers, flange blocking frame, fiber optical poke protector, optical fiber protective sleeve |
Dome and in-line splice closures for trunk cable fusion splicing and repair, up to 288 fibers.
| Maximum Capacity | Up to 288 fibers |
| Dome Type — 96F | 96 single fiber, 4 splice trays |
| Dome Type — 288F | 288 ribbon fiber, 4 splice trays |
| In-line Type — 4 Tray | Single fiber, 4 splice trays |
| In-line Type — 192F | 192 single fiber, 8 splice trays |
| In-line Type — 288F | 288 ribbon fiber, 12 splice trays |
| In-line Type — 8 Tray | Single fiber, 8 splice trays |
| Material | High quality engineering plastic |
| Installation | Underground, aerial and pole-mounted |
| Types Available | Fusion splice, adapter and splitter |
